A Russian Naval Dip Meter

24 06 2012

This post was preceded by  “An Improvised Dip Meter”

In the preceding post, I wrote a little about the Blish prism and the Gavrisheff dip meter and pointed out that if the angle between two horizons opposite to each other could be measured, the local dip could be deduced. Through the kindness of Alex Eremenko, I have recently been able to examine in detail an N 5 Russian dip meter which has several interesting design features. It is probably easier to appreciate these if an idea is had of the optical path of the instrument (Figure 1). I explained a little about dip and its importance in celestial navigation in the preceding post.

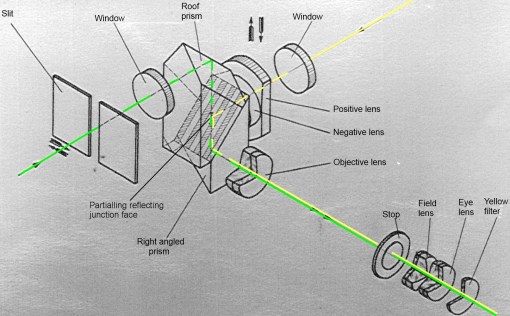

Figure 1 : Light path of Russian N5 dip meter.

The horizon is viewed simultaneously to the left and right of the observer. Taking the rays from the left side first, shown in green,  they pass through an adjustable slit, used to make the brightness of the two horizons equal, through a watertight window in the side of the instrument and thence to a roof prism, where they are deflected downwards at 90 degrees. They then pass through a semi-reflecting junction, and are again deflected by a second prism through 90 degrees in a plane at right angles to the first, into the objective of a x 4 Keplerian (inverting) telescope.

The rays from the right hand horizon also pass through a window and then through a weak positive (convex) achromatic lens of 1.5 dioptres power. They then enter a negative (concave) lens whose power is such that the two lenses together have no net power, so that they behave like a piece of plane glass. However, the positive lens can be moved up or down from a central position, so that the light path also moves up or down – but not by very much. In fact, the total travel of the lens is 12 mm and the total deflection of the rays is 15 minutes of an arc each way. The right rays continue on through the right angled prism and are reflected off the common, semi-reflective face, off the opposite face and thence into the telescope objective, where they are combined to be viewed through the eyepiece. A yellow filter can be attached to the latter to reduce glare. Figure 2 shows the practical realisation of Figure 1.

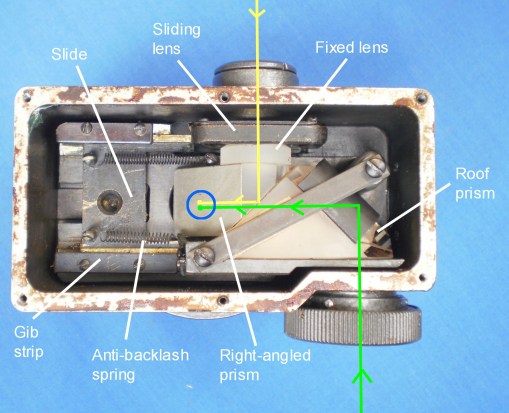

Figure 2 : Practical light path

Projecting from the bottom of the slide that carries the sliding lens is a boss which carries an adjustable cam follower. This cam follower is held by two anti-backlash springs against a large cam (Figure 3). The cam is rotated by means of the adjusting ring, which carries a scale graduated plus or minus 15 minutes from zero, each minute being subdivided to 0.2 minutes (Figure 4).

Figure 3 : Adjusting cam.

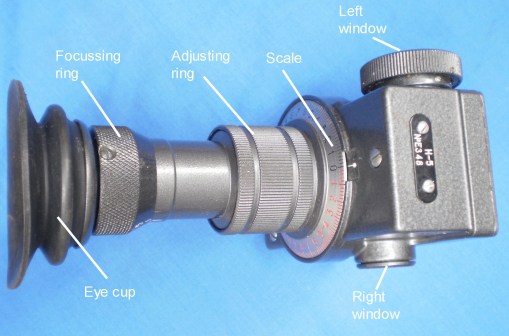

Figure 4 : 3/4 Plan view.

Figure 5 shows the 4-power telescope. The images of the two horizons are seen to be vertical and, by rotating the adjusting ring they are brought into coincidence, when the dip can be read off the scale. The zero is set using two autocollimators, aligned as described in the preceding post An Improvised Dip Meter.

Figure 5 : The telescope.

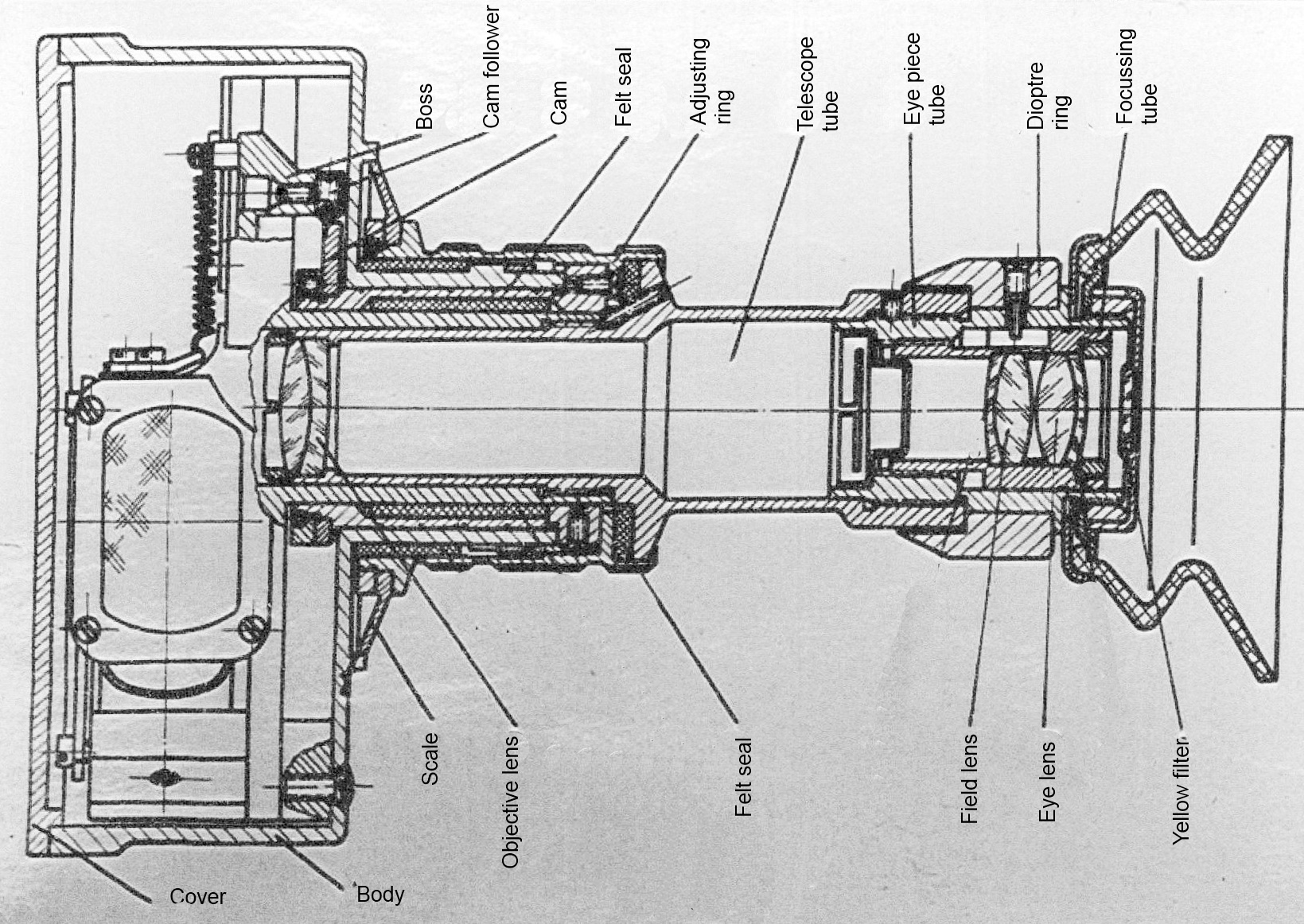

The instrument is well-sealed against the ingress of moisture by greased felt rings where there are rotating parts and by heavy wax at metal-to-metal and glass-to-metal joints. It is provided with a stout leather carrying case. Figure 6, modified from a drawing in the original Russian handbook, shows the general arrangement of the parts. It can be seen at a larger scale by clicking on the picture. Use the back arrow to return to the text.

Figure 6 : General arrangement drawing.

To use, the window with the slit is directed to the brighter horizon and the slit adjusted to make its brightness equal with the opposite horizon. The adjusting ring is rotated to bring the horizons (which will be seen to be vertical) into coincidence and the reading noted.. The observer then rotates through 180 degrees (about a vertical axis, of course) and also rotates the instrument through 180 degrees on a horizontal axis. A second reading is taken and the dip taken as the mean of the two.
