Carl Plath micrometer sextant

18 12 2010
The preceding posts cover : A Damaged Rising Piece”, “SNO-T Mirror Bracket Repair”,  “A Worm Turns”, “The case of the broken screw”, and “Worm with wrong thread angle?”

  While this post is under the head of “Interesting Overhaul Problems”, it is perhaps more about facets of the instrument’s design that have not been covered on my blog in any detail before. This is not to say that there were not problems: the switch and wiring of the scale illumination;  a broken rising piece on one telescope; and a lens that had become uncemented in another telescope. I was entrusted with this instrument by a new owner who had sought my advice about what he should buy and, while I think Plath sextants are rather overvalued, he got a bargain because of its defects and I had the pleasure of overhauling it. I should add that I do not attend to other people’s sextant for gain, but rather because doing so gives me a chance to examine details of construction that I would not otherwise get to see.

General description

Figure 1 shows that the sextant has a ladder frame, in this case of bronze, with a radius of about 162 mm. The paintwork had many chips and wrinkles. The index mirror is 56 x 42 mm and the half-silvered horizon mirror is 57 mm in diameter. There is the normal complement of shades. The fixed part of the release catch is formed integral with the perspex (Lucite) light guide, which showed signs of having been broken and competently repaired. There was no wiring between the battery handle and the lamp fitting, and the switch button was missing. The micrometer drum was yellowed and dirty. The micrometer mechanism was encrusted with dirt and old grease and oil. The original telescope (on the right in Figure 1) had plainly been dropped at some time, as there was a complex crack in the objective lens end of the body, the lens cement was crazed, as sometimes happens with a physical shock,  and the lens was retained by an untidy mixture of glue and O ring material, the thread for the original retaining ring having been turned away.(Update 2016: I have since seen an intact version of this telescope and there was no retaining ring. The lens was simply glued into place.) It gave no usable image. Presumably at a later stage, another, higher quality telescope had been bought and the rising piece weakened by having a hole drilled in it, for the flat part of the locating vee and flat had broken off, so that this telescope too was unusable.

Figure 1 : Sextant as received

Features of interest

Index arm bearing: Almost certainly  it was the great eighteenth century instrument maker, Jesse Ramsden, who originated the usual form of the index arm bearing, a tapered hard bronze shaft running in a brass bearing. This form of bearing is self-centering and easily adjusted for wear, though none ought to be expected in such a slow moving, lightly loaded arrangement. Until seeing this sextant, I had thought that only Freiberger Präzisionsmechanik and the makers of the SNO-T sextant (possibly one and the same) had used a parallel-bore bearing, but C Plath seem to have adopted the same practice by the 1970s, as production advances in micro-finished bearings advanced. Figures 2 and 3 show that the index arm shaft is integral with the index mirror bracket and is provided with a white metal sleeve (white metal is a heard-wearing form of bronze, high in antimony). The shaft runs directly in a bearing machined in the frame and is retained by a thick white metal washer secured by a single screw.

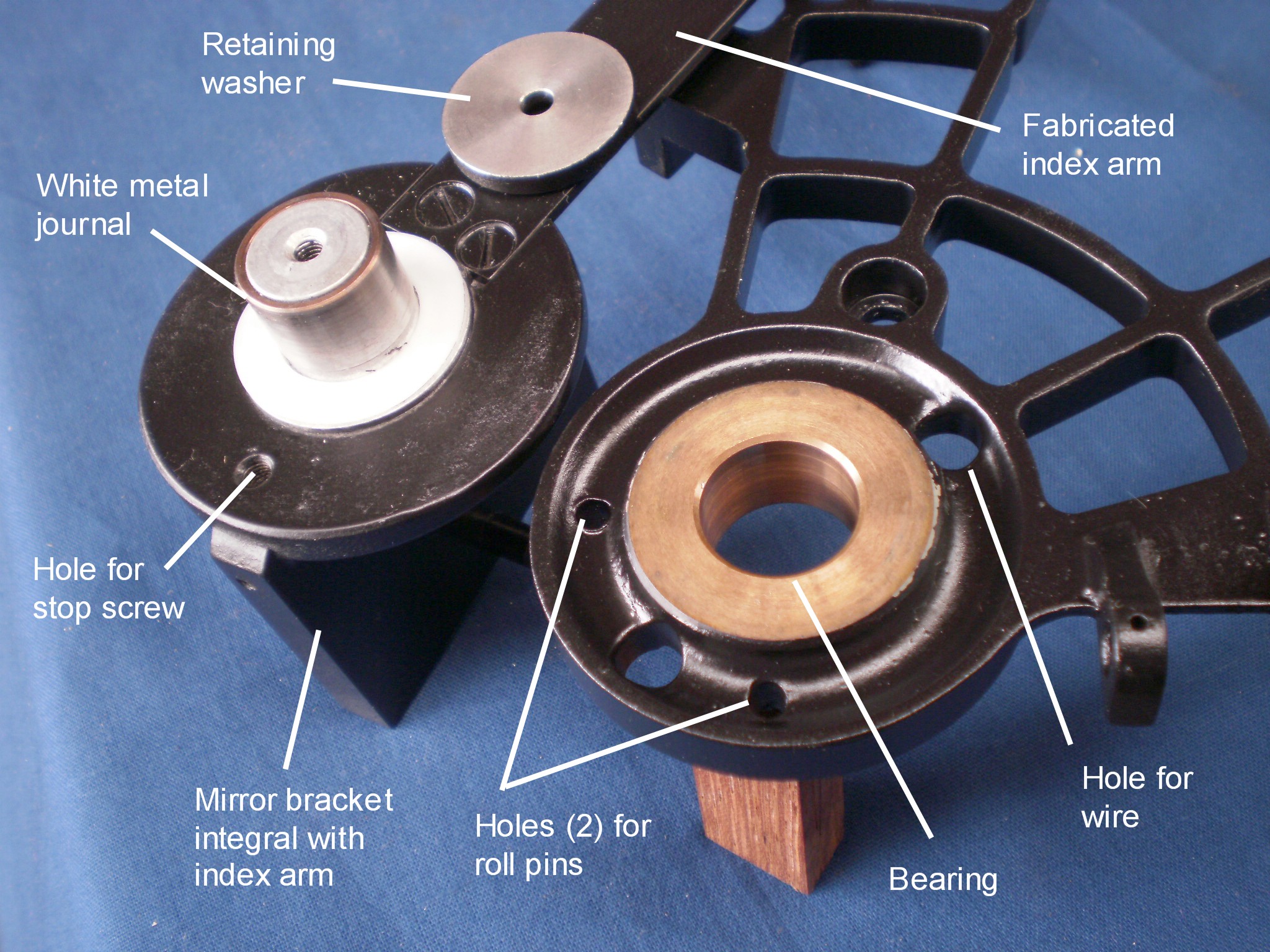

Figure 2 : Index arm bearing, exploded view

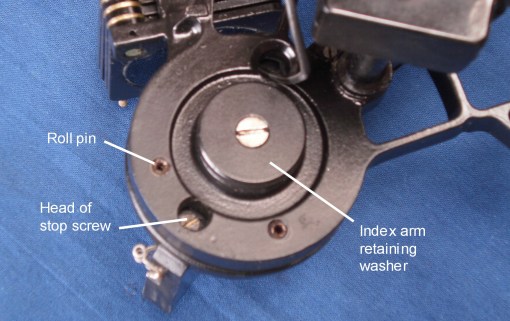

Figure 3 : Index arm bearing, assembled

Ramsden seems to have used the very successful tapered bearing partly because of problems with stick-slip. A modern cylindrical bearing in this application needs to be made with a high degree of precision, so that clearances are both minimal and compatible with free running. An eccentricity of only o.002 mm can lead to a reading error of 10 seconds.

Limit pins and screw: Figures 2 and 3 also show how two roll pins are inserted in holes in the frame and a limit screw in the shaft casting, so as to limit the arc of movement of the index arm. This seems to me to be poor design. Quite apart from the suitability of using steel roll pins in a marine atmosphere, the force that causes the movement to be limited is at the end of a long lever arm, so that stress is unnecessarily applied to the index arm when it reaches the end of its range of movement. Most other sextants that have stop screws for the index arm have them logically placed at the ends of the limb. From a production perspective, two plain holes for the roll pins and a tapped hole for the limit screw is balanced by two tapped holes for stop screws.

Index arm:  The combined mirror bracket and bearing shaft or journal is united to the 20 x 2 mm aluminium alloy index arm by two countersunk screws (see Figure 2). At the lower end, the index arm expansion is attached by four screws, standard C Plath practice, whereas many other manufacturers made the whole in one piece. Figure 4 shows the lower end of the index arm with the light guide removed.

Figure 4 : Index arm expansion detail

The screw at the upper left end of the release catch ends in a pin that passes through a vertical slot in the index arm and a horizontal slot in the swing arm (the slot in the swing arm is clearly visible in Figure 6, below), so that when the catch is operated, the swing arm and its attached micrometer mechanism swings out of engagement with the rack. Two countersunk screws attach keepers to the other side of the index arm expansion and these engage in a slot that runs parallel to the rack. They can be seen in part in Figure 5, below. The keepers prevent the index arm expansion from lifting out of the plane of the arc. Above each  keeper retaining screw is a grub screw and lock nut. The tip of the grub screw has a pad of low-friction plastic material that bears on the arc, and the screw is adjusted so that there is no lifting of the index arm, and then locked with the nut. Other makers seem simply to have made the keepers so that they are of the correct size or, as in the Leupold and Stevens sextant described in my post  “US Maritime Commission Sextant”, have split them to give an element of spring loading.

Micrometer mechanism : The mechanism as found is shown in place in Figure 5 and shown cleaned and exploded in Figure 6. The mechanism was originated by C Plath in about 1909 and followed by most other makers, especially Tamaya,whose first micrometer sextants were more-or-less exact copies of Plath instruments.

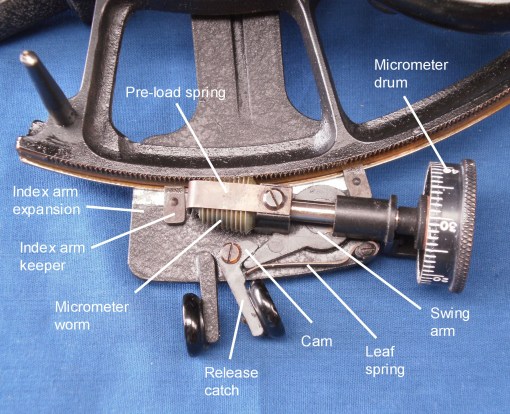

Figure 5 : Micrometer mechanism as found

Figure 6 : Micrometer emchanism exploded

A swing arm that carries the micrometer worm bearing rotates around a bearing. A leaf spring bears against the swing arm to hold it in place against the rack and the release catch swings it out of engagement against the spring. The original Plath micrometer bearings were rather complex and must have involved a deal of hand fitting, but over time they have been simplified to the plain parallel bearing seen in Figure 6. An L-shaped spring bears on a ball bearing let into the end of the worm to provide axial preload, so that there is no end play when the micrometer is operated. The swing arm bearing must be removed from the swing arm chassis in order to extract the worm shaft from the inserted bronze bearing bush for cleaning and greasing.

The micrometer drum and its integral thimble  is held in place by a single axial screw and is prevented from rotating on the shaft by a pin. In this example, the pin was not set correctly, so that when the sextant is set to a full degree on the scale, the micrometer drum reads about 10 minutes, rather than zero. It would probably have been better to omit the pin, as most makers have found that a screw alone is sufficient to prevent the drum from  rotating on the shaft.

Mounting of shades : The shades themselves are in conventional brass mounts, but the method of attaching them is a little unusual and perhaps unnecessarily complex. The shades rotate around a shaft that is provided with a longitudinal keyway and which passes through a bracket cast integral with the sextant frame . It is held captive at one end by a cross pin, in this instance a steel roll pin, presumably to save on the cost of reaming for a brass taper pin. The shades are separated from each other and from the bracket by washers that have integral keys that prevent them from rotating, so that when a shade is rotated, its movement is not transmitted to its neighbour (Figure 7).

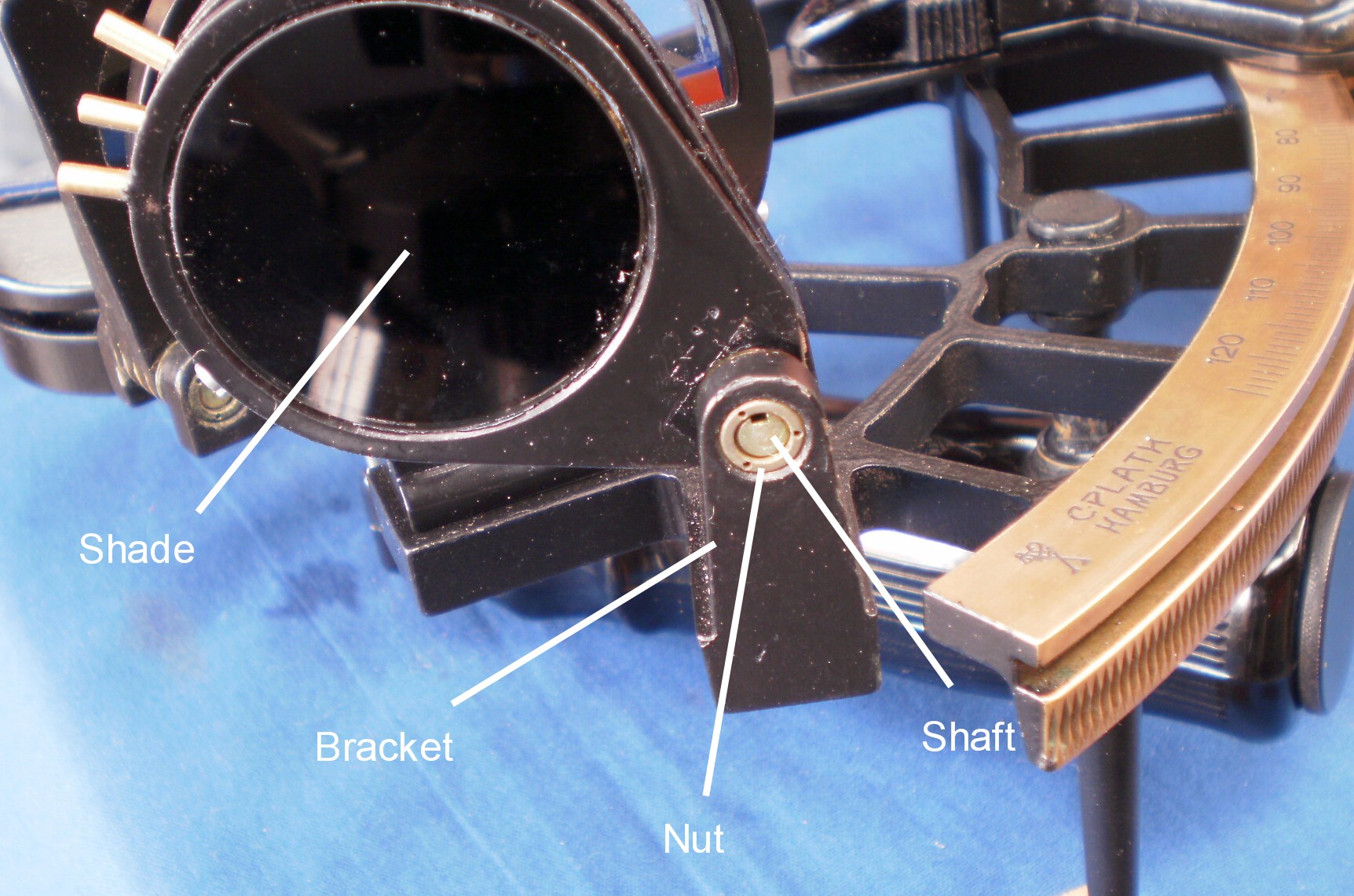

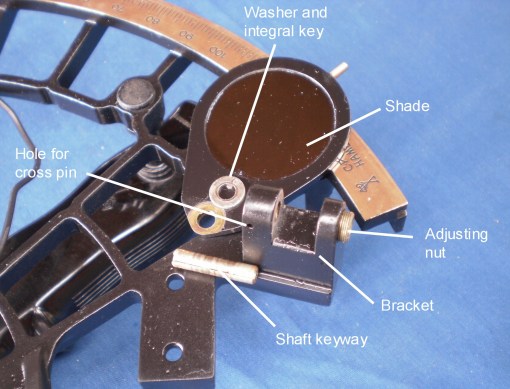

Figure 7 : Mounting of shades

The shaft is carried in a threaded bush (I have incorrectly labelled is as a nut) at one end of the mounting bracket, and when the bush is screwed fully home it bears on the stack of washers and shades to provide a means of adjusting the amount of friction. The bush is rather unusual in that it is provided with three pin holes for rotating it. This may have given rise over the years to a deal of bad language, as  presumably only those in possession of the special wrench needed can make the adjustment (Figure 8).

Figure 8 : Shade friction adjustment

Switch and lighting : A trend with both Tamaya and C Plath has been to make the construction the of the battery handle so that it can be serviced only with difficulty, if at all. This example had no switch button or external wiring, and there was no obvious means of access to the switch. Eventually, I discovered by the application of a little brute force that the switch and a wirng socket had been glued into a transverse hole in the handle. The switch is a small item, rather difficult to illustrate, so I offer a sketch to guide others (Figure 9).

Figure 9 : Sketch of switch construction

The spring-loaded switch button is held captive in a plastic moulding by a small screw. When the button is pressed, its head bridges the ends of two contacts that are in the form of elongated Ls, shown in red in the sketch. A wire leads from one contact to a transverse brass rod that forms the contact for the upper end of the battery and the other contact is wired to a brass slug that forms a rather basic socket. The plug for this was absent and so I made a semi-permanent connection between the socket and the lamp holder, as shown in the sketch. I also had to deconstruct the switch so that I could repair a broken contact, make a new button, find a new screw and spring and assemble them all on the bench, before rewiring and re-gluing the parts in place in the handle.

  Damaged telescope : I managed to extract the lens from its mass of glue without damaging it. Older cemented doublet lenses are cemented with Canada balsam and can most safely be separated by slowly heating in a pan of water until, just short of boiling point, the two elements can be slid apart. The lens resisted this technique and I had to raise the temperature slowly in an oven, checking at frequent intervals until finally I could slide the elements apart. Once done, it is important to avoid thermal shocks to the lens elements by for example, placing them while hot on a cold surface. Once cooled, they can be cleaned up with xylene, often sold mixed with isopropanol for cleaning paint brushes, and re-cemented using a drop of Ultra-Clear Araldite, whose refractive index is very close to that of glass.

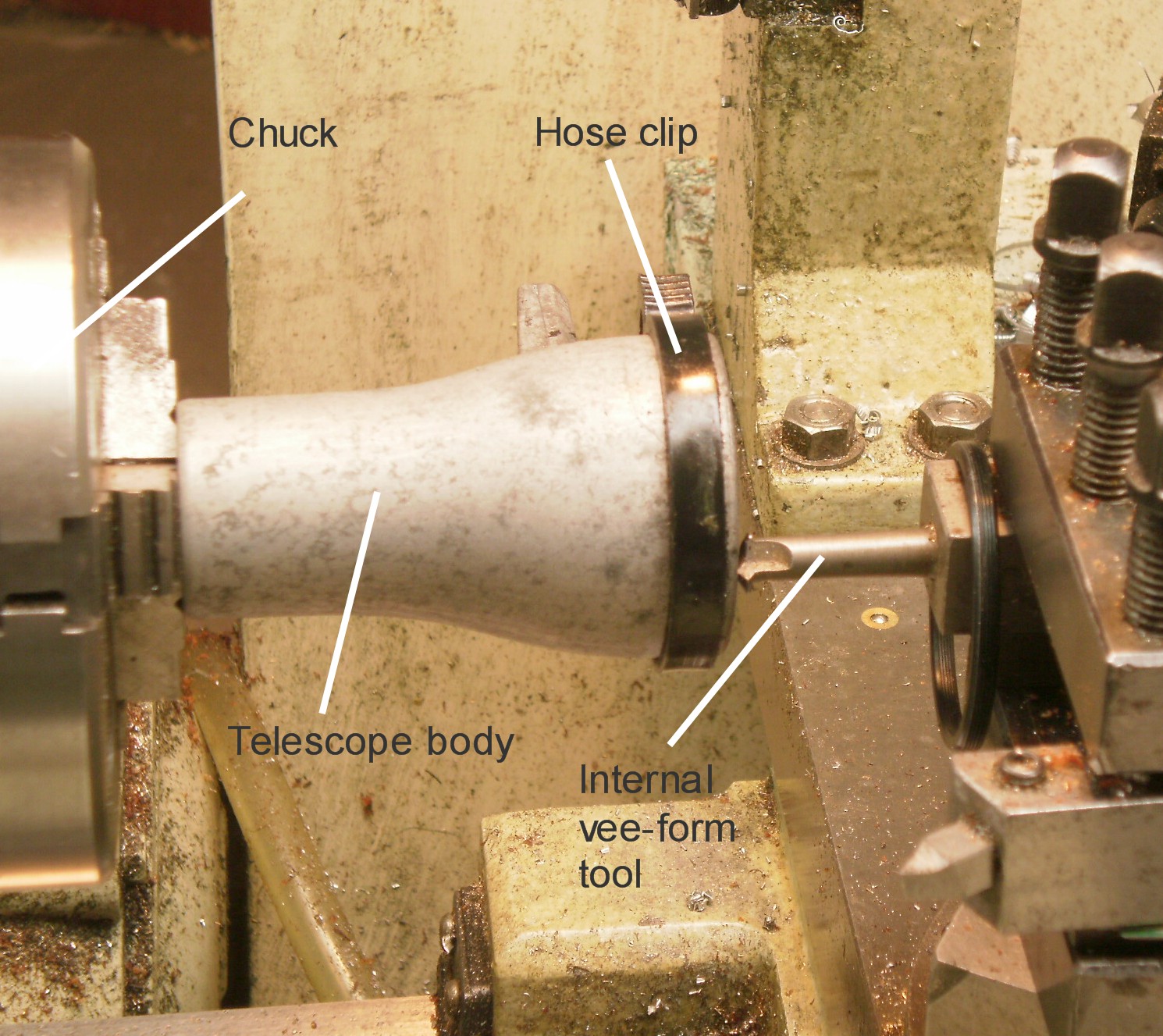

The end of the telescope body was cracked and the original internal thread had been removed, so that there was very little wall thickness left to accommodate a new locking ring. I ran a little superglue into the crack and clamped the edges together in the hope of preventing it from propagating any further. Figure 10 shows the before and after repair and Figure 11 shows the rather precarious set up for machining a new internal thread of 0.5 mm pitch. Novice turners may note the plastic hose clip, applied to reduce ringing and chattering.

Figure 10 : Telescope before and after repair

Machining new rising piece : The external profile of this could probably have been cut out by sawing and filing in the time it took me to set up a vertical milling machine to mill it out, but I had the time and so I elected to have a little practice. Many modern machine shops would simply feed a drawing into a computer and let the computer controlled machine do the rest, but I had to use my Mark I brain and eyes. Figure 10 shows the machining sequence I used and also shows the finished part, ready to be united with the telescope (left clicking on the figures allows you to zoom in and you get back to the text by using the back arrow). To save time and metal, the raised vee is a separate piece of metal attached from behind by three screws.

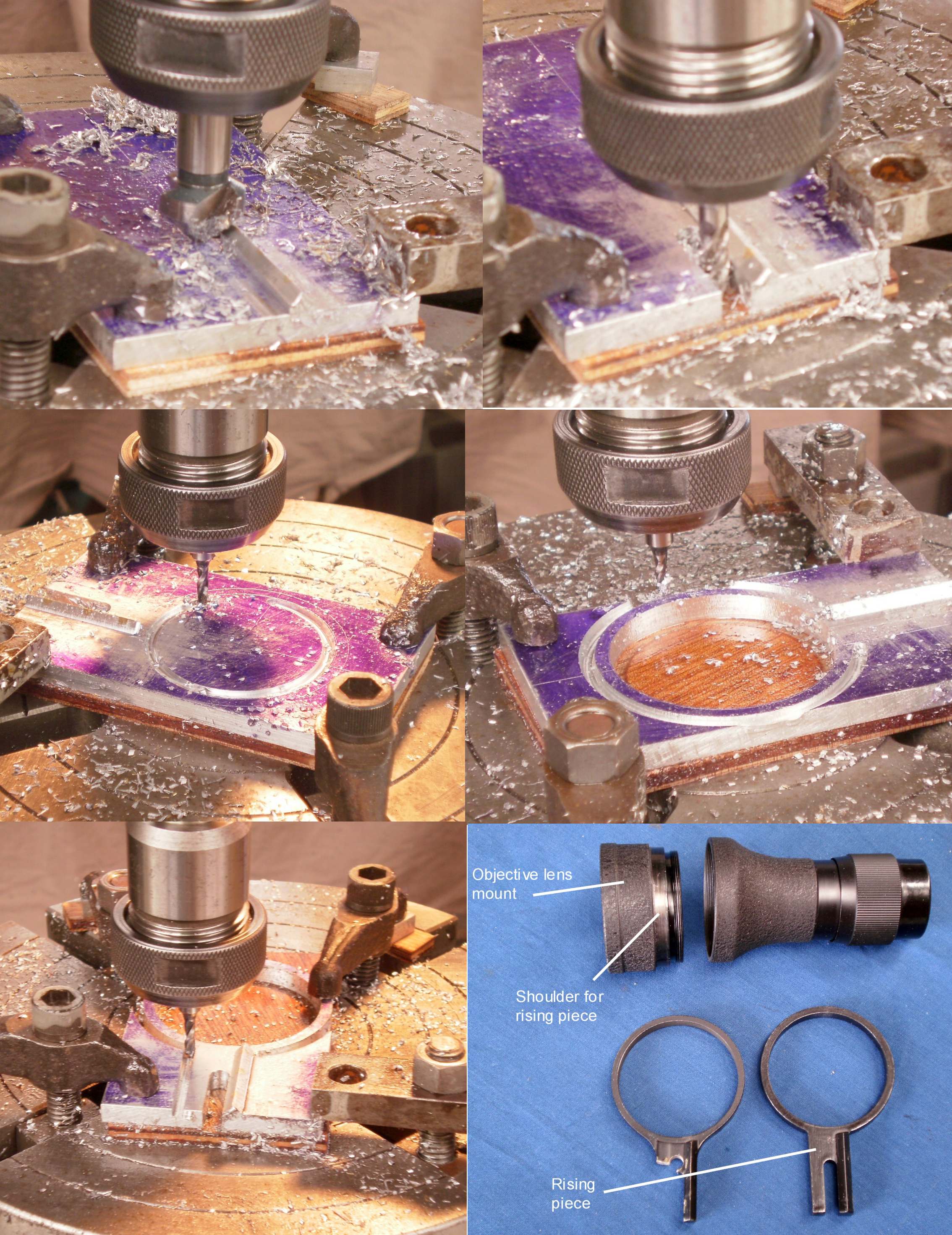

Figure 12 : Machining the rising piece

The rest of the restoration consisted of grinding the edges of the index mirror, cut from 4 mm float glass mirror stock, grinding out a circular horizon mirror, removing half the silvering (Figure 13) using a safety razor blade and hydrochloric acid, and sealing the backing with gloss enamel paint. After sanding off lumps and bumps from the frame paintwork and entirely stripping the index arm and other small parts, applying etching primer and a couple of top coats was relatively easy. For the latter, I use CRC Black Zinc paint out of a spray can (though it is available also in bulk). It gives a semi gloss finish very close to the original. The light guide required more care, as I was concerned that solvents in the paint might attack the plastic, so it had a coat of white acrylic primer and undercoat to give it some protection, followed by several coats of CRC Black Zinc. While it was possible to remove a lot of the encrusted dirt from the micrometer drum, it still retained a yellowish tinge and I could not restore it to a pristine whiteness. I understand that sunlight can sometimes bleach yellowed plastic, but will leave that to the new owner.

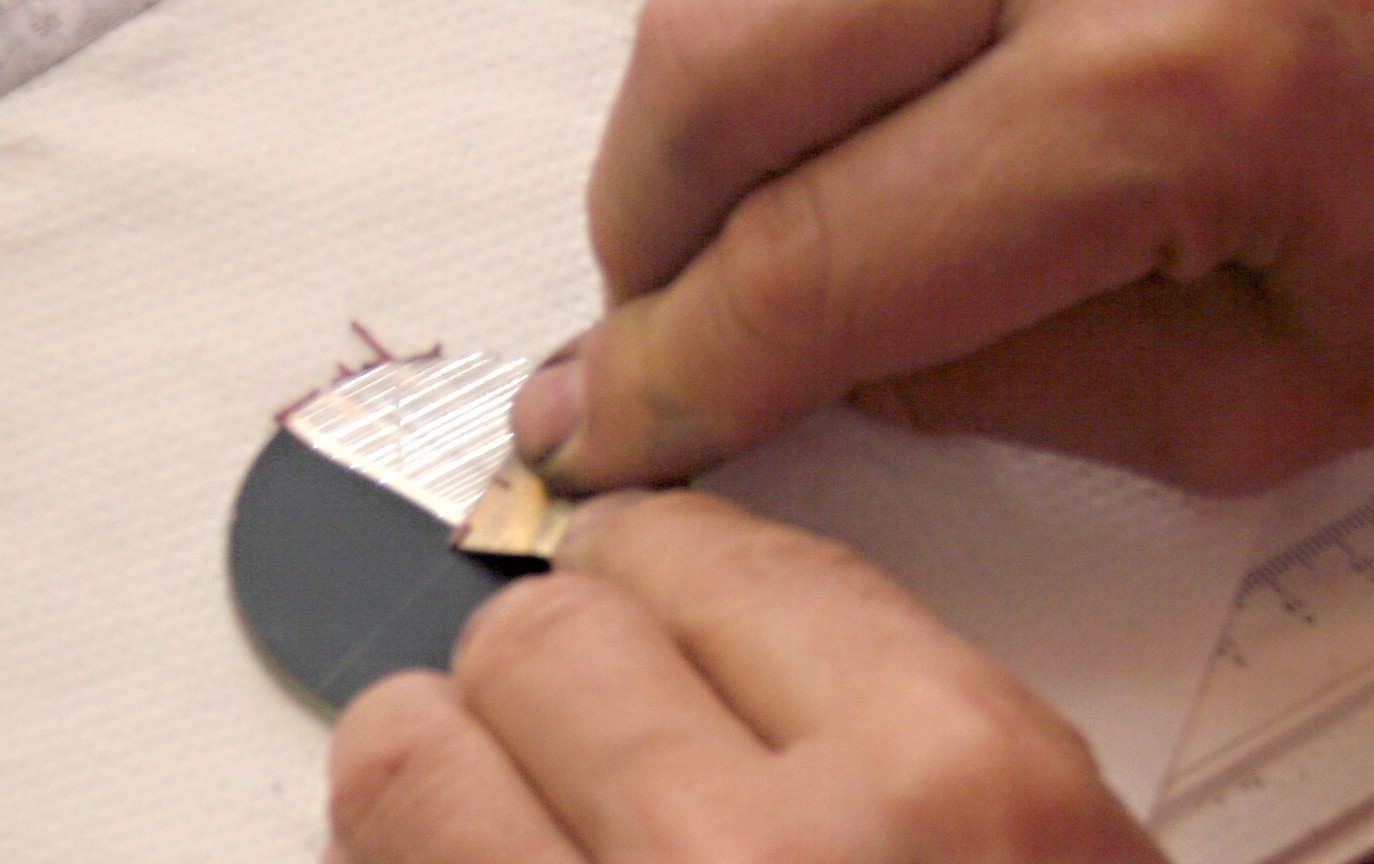

Figure 13 : De-silvering horizon mirror

The case was in relatively good condition, on the inside at least, though the exterior varnish had perished in places. There were no pockets to hold batteries or the 1.5 mm AF allen key that serves to adjust the mirrors, so I used my feeble wood-working skills to make some, as well as one for the best telescope. I removed all the old varnish from the outside, applied several coats of shellac inside and out and finished by applying wax polish in the hope that over the next thirty-five years of its life it will acquire a pleasing patina. Figure 14 shows the appearance near the end of 2010.

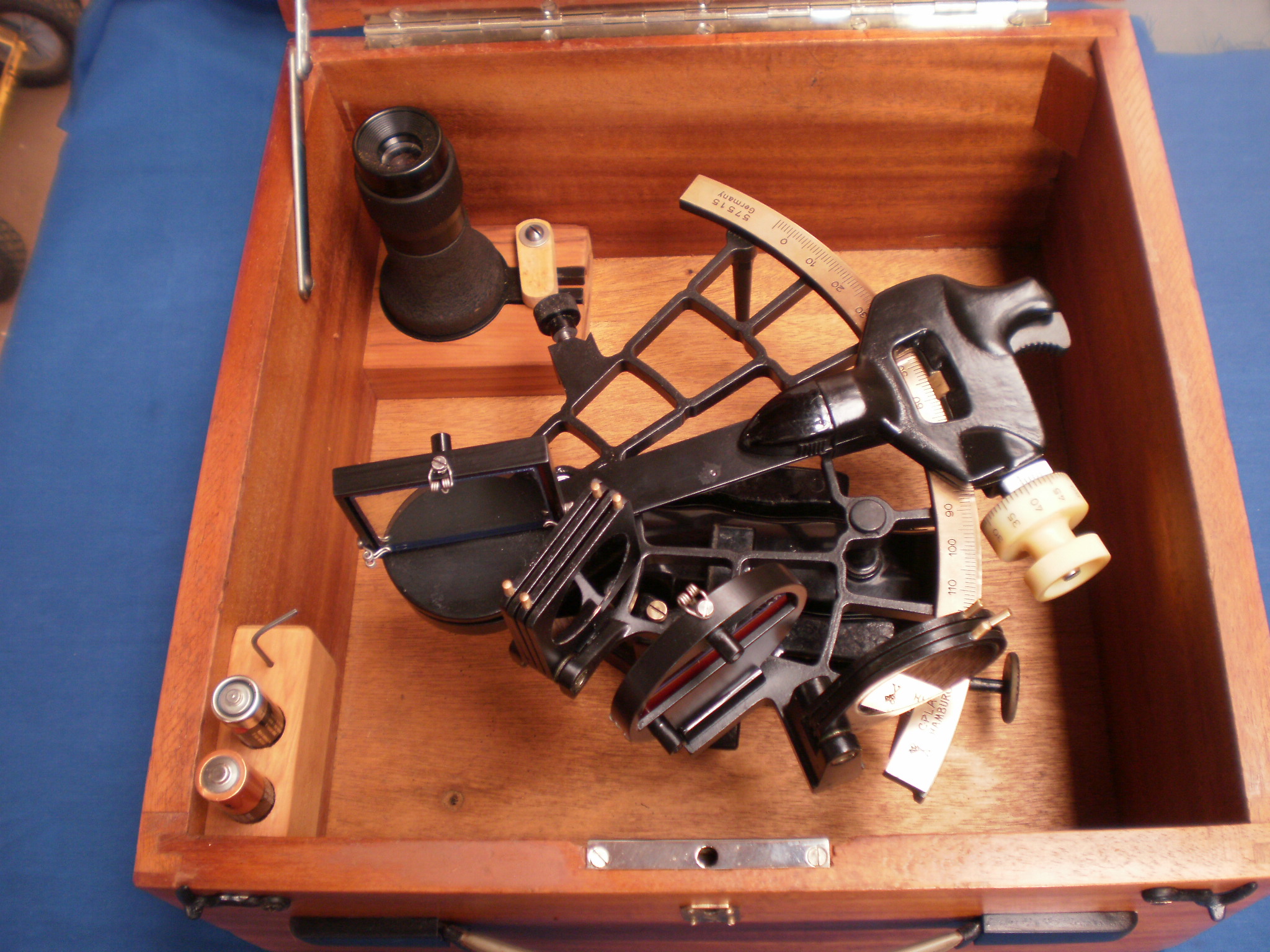

Figure 14 : Restored sextant in case

The Nautical Sextant continues to get good reviews from buyers and others and there are still hardback copies available in New Zealand, from me if not from booksellers. Hints to a loved one might get you a copy in time for Christmas…


Comments : 4 Comments »

Categories : Interesting Overhaul Problems

A US Maritime Commission Sextant

14 12 2010
The US Maritime Commission was formed in 1936 to make long term plans to construct 500 modern cargo vessels over a 10 year period, with the intention of leasing them to US shippers, whose fleets then consisted mainly of aging vessels. The US Maritime Service was formed at the same time under the Merchant Marine Act, for the training of ships officers. Late in the autumn of 1940, an emergency Shipbuilding Program began and by the end of the Second World War, the Maritime Commission had overseen the construction of 5,777 merchant ships and naval auxiliaries, including 2,751 “Liberty” ships. These were later to form the nucleus of new merchant fleets for the former combatants, as the US Merchant Marine had lost 866 ships, the United Kingdom 3,194, other allies 1496 and Japan 2,346.

Large numbers of sextants were required for the officers of these ships and contracts were let to several manufacturers who had not previously been involved in sextant production. Among them were Leupold and Stevens, who were noted pre-war for making water flow gauges and telescopes. One of their sextants, bearing an inspection certificate for April 1945, recently came into my hands.

Unlike the BuShips Mark II instrument, the merchant service sextant was conventional and relatively up to date, with a gesture to wartime austerity, in that it was fitted with only three index and two horizon shades, giving six and three possible combinations of shade respectively. The paintwork seems not to have stood the test of time as in the two examples I have seen, it had disappeared almost completely from the instrument (Figure 1). Traces of  paint were present here and there, revealing that the frame had been painted with a smooth semi-matt finish and the rest in a wrinkle finish.

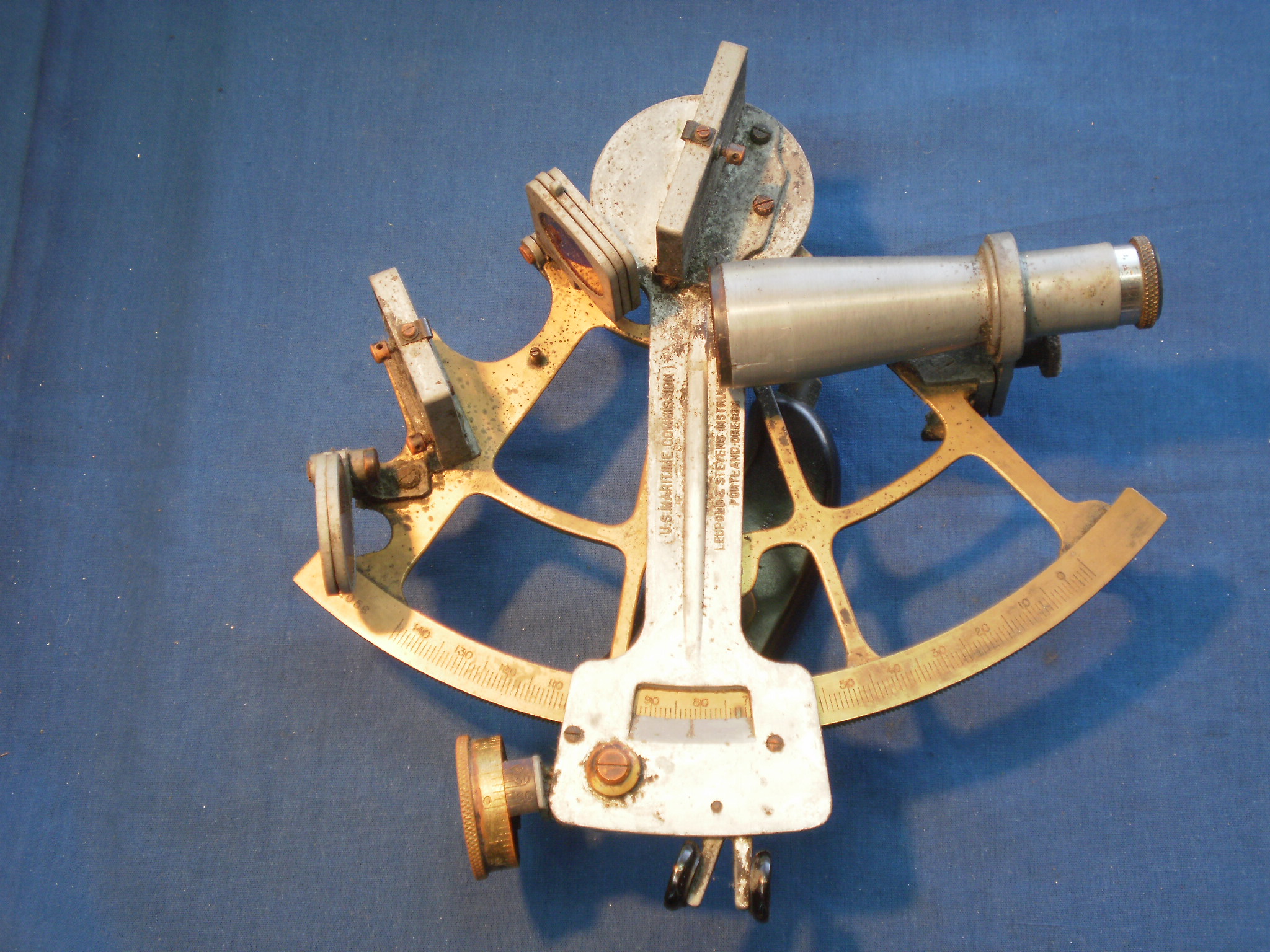

Figure 1 : Paint-free sextant as found

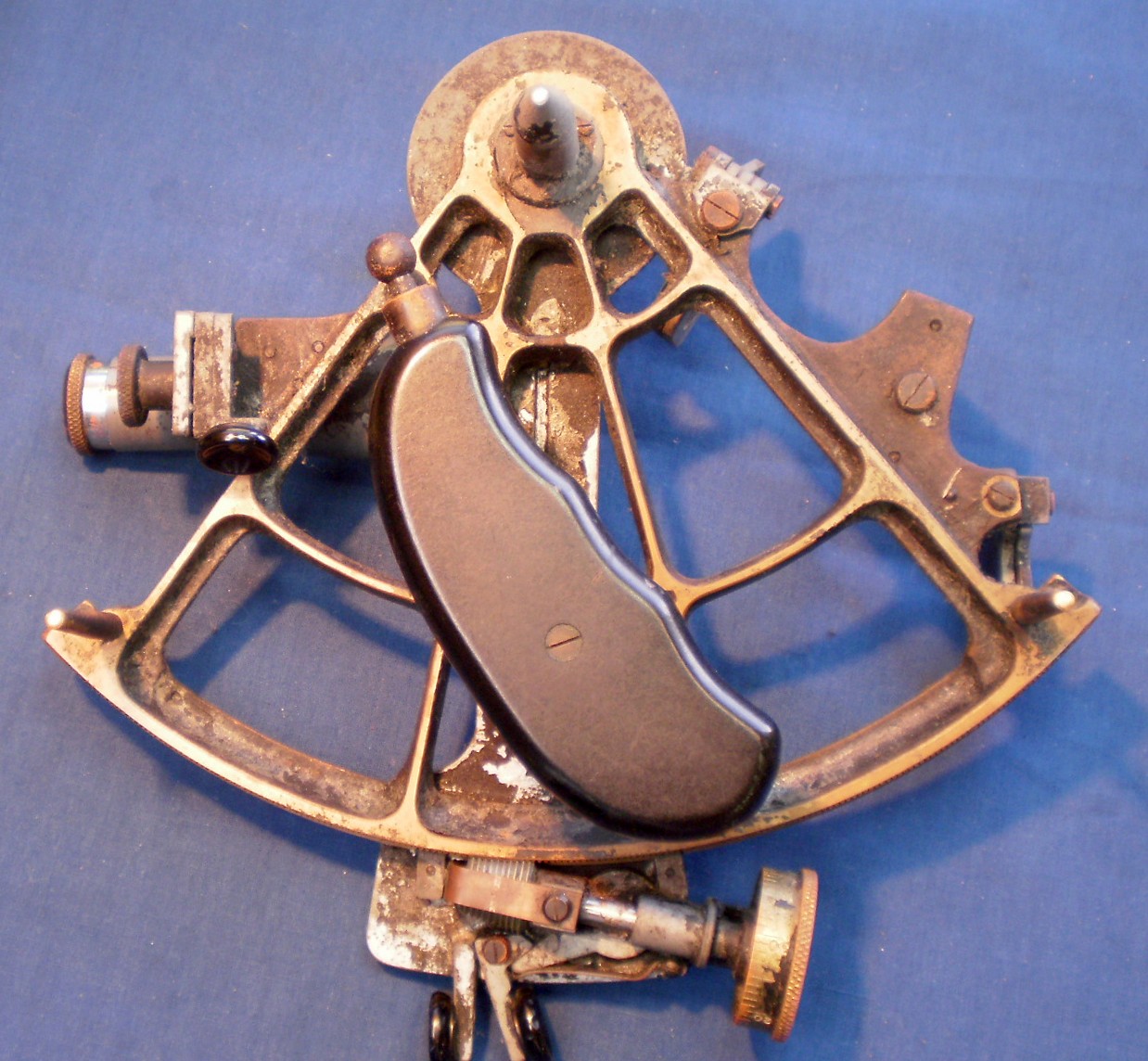

Figure 1a : Rear (RHS) of sextant as found

The frame, of ladder pattern, at first sight looks very much like the Pioneer-Bendix Mark II’s, except that it made conventional provision of tabs for mounting the shades, horizon mirror and telescope, rather than the rather antiquated attachments of the Mark II. However, the frame is a high quality sand casting in bronze rather than a composite of aluminium alloy with bronze rack. The placing of the rack is conventional and the micrometer mechanism copies closely the design of Henry Hughes and Son. The standard tapered index arm bearing  is concealed beneath an alloy cover that serves as a third leg while the elegant black Bakelite handle is swept back at an ergonomic thirty degrees, unlike that of most sextants of the period (Figure 2). There is an interesting little rest for the thumb.

Figure 2 : Rear (RHS) view of restored sextant

 The index arm is a stout aluminium alloy die casting, with an integral stiffening rib. The words “U.S. Maritime Commission” and “Leupold and Stevens Instruments Portland Oregon” appear in cast-in raised letters. The front end of the index arm expansion has a bronze bush that forms the bearing of the very simple Hughes-pattern swing arm. The latter is also an aluminium casting with bronze bushes for the micrometer shaft. The cam of the very simple release catch bears on a spring loaded extension of the swing arm, and an L-shaped spring bearing on the tip of the worm provides axial preload to the micrometer shaft (Figure 3). The micrometer drum is of brass and the micrometer vernier is divided to 10 seconds.

Figure 3 : Micrometer mechanism

Figure 4 : Keeper detail

Of interest perhaps only to the true lover of detail is the form of the index arm keepers. Attached by a single screw and steadied by a dowel, the tongue that engages with the slot in the edge of the limb, to keep the index arm from lifting, is slit, so that by spreading the tongue slightly, a very close fit indeed can be obtained (Figure 4).

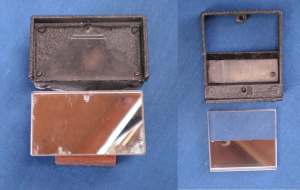

Figure 5 : Index and horizon mirror mounting detail

The shades and mirrors are mounted conventionally, but the latter show another interesting thought for detail. Each mirror is provided with a backing of thin, springy sheet brass that is interposed between any adjusting screw and the mirror back, thus preventing the paint film on the back of the mirror from damage that might allow access of sea water to the silvering (Figure 5), this at a time when it was more usual to insert a sheet of thin card or nothing at all.



The 2 1/2 power telescope has a field of view of 6.5 degrees and, at 120 mm long, is unusually long for a Galilean sextant  ‘scope, but is none the worse for that. The 30 mm aperture objective lens gives a bright and clear image, as might be expected from a specialist telescope maker. It  does with two lenses nearly what the Mark II telescope did with seven. Provision is made for rise and fall with a conventional vee and flat slide.

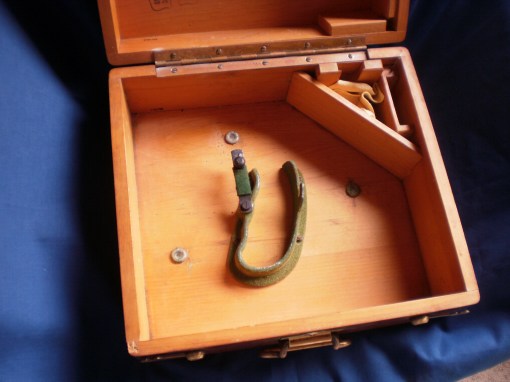

Figure 6 : Case inside

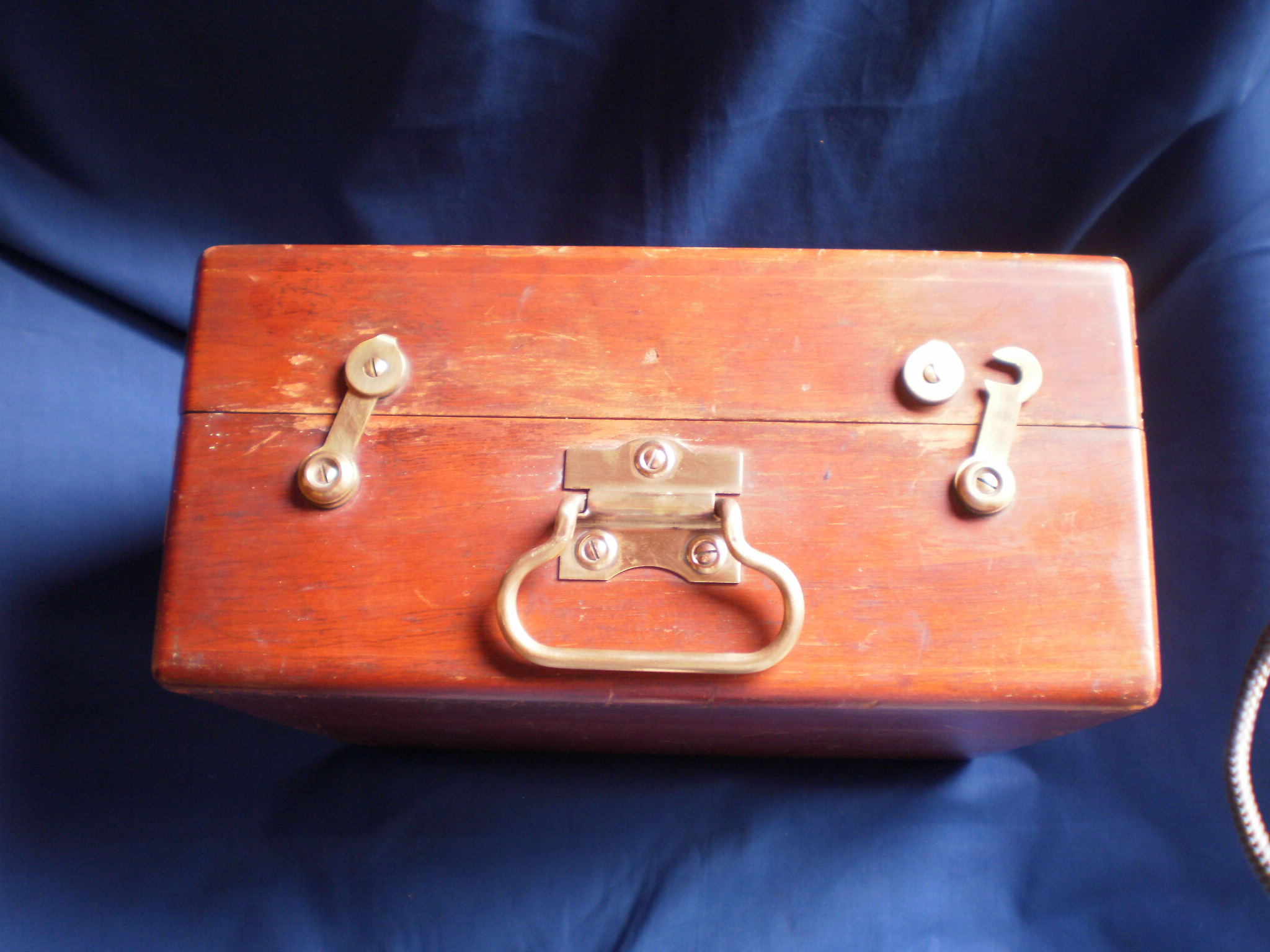

Figure 7 : Front of case

 The sextant was provided with a well-made pine wood box, stained reddish brown, with drawer dovetails front and back, brass piano hinge, locking latches and a very substantial brass handle. The sextant was retained in the case by an aluminium pocket with a cross latch, and the legs sat on alumnium pads to protect the bases of the box. The pocket has been sprayed with a felt-like green paint which, unlike the rest of the paint work, did survive sixty-five years (Figures 6 and 7).

The final photograph shows the instrument restored to a near-new condition (Figure 8). We may surmise that at least 2000 were made by the end of the War.

Figure 8 : Fully restored instrument
