Evolution of the Sextant Frame

28 09 2010
This post is followed by one about the sextant micrometer’s evolution. See also Eighty years of C Plath Sextants (November 2012)
MATERIALS
Edmund Halley used a form of sextant during  a voyage of 1698 to 1699. It was made by or for Isaac Newton when he was Master of the Royal Mint, but it has not survived. Though we know about its general form, we know little else about it. We can be fairly sure that it had a large radius and that its frame was probably made of wood with an ivory or boxwood scale. The large radius was necessary because instrument scales were at that time divided by hand and the larger the radius, the smaller were the errors. While we cannot be sure about the material of the frame, because a typical radius was about 380 mm (15 inches), a brass frame of this radius would have been too heavy to handle conveniently.

Wood

Wooden frames continued to be used for another 150 years for cheaper instruments or those where a high degree of accuracy was not required, for example, in finding latitiude by measuring the angular height of the sun above the horizon at local noon.  Strictly speaking, these were octants, measuring up to 90 degrees, because no body has an altitude greater than this. By the middle years of the eighteenth century there was in England a push for greater accuracy of observations. Nevil Maskelyne, the Astronomer Royal had published in 1763 The British Mariner’s Guide, which contained an English translation of Tobias Mayer’s tables of predictions of the moon’s position in the sky, together with instructions on how to use them to fix longitude at sea. Since the moon moves across the sky at a different rate to the movement of the Sun and stars, it can be used as a sort of celestial clock by measuring the angle between the moon and another heavenly body. By comparing one’s local time with that derived from the lunar distance, say, at Greenwich, the longitude could be deduced. Unfortunately, the difference in rates of the movement between the moon and the other bodies is relatively small, so that a small error in measuring the angle results in a large error in the deduced longitude.

Wooden instruments were not capable of measuring the angles with the required degree of accuracy nor, for that matter, were hand divided instruments. Jesse Ramsden described his dividing engine in 1774 (see my post under Chasing tenths of an arc minute, September 2010) after which practically all sextants were machine divided. From about this time also, sextants, able to measure up to 120 degrees of an arc, started to be made of metal, as they could now be made smaller, while wood continued to be used for many of the lowly octants, more usually called Hadley’s quadrant or simply “a Hadley” .  The wood used was usually heart ebony, a very hard, stable and dense wood  (Figure 1), though mahogany was also sometimes used. The index arm (alidade), mirror and shade mountings were made of sheet brass, using techniques well established by the clock-making industry.

Figure 1: Mid 19th century octant in ebony and brass

Bronze

Though museum cataloguers often describe sextants as being made of brass, an alloy of copper and zinc, the metal used was bronze, an alloy of copper and tin. Sound castings could not be made in brass with the techniques and alloys of the time, whereas it is possible to make relatively large and intricate castings out of bronze. As the proportion of tin increases, the metal becomes harder and more rigid until, at a maximum of around 20 percent of tin it becomes known as bell metal. This is somewhat brittle and the bronze used for sextants contains about 8 to 10 percent of tin. Early metal sextants commonly had a limb of brass screwed on to the front of the frame and heads rivetted and filed flush (the heads are visible in Figure 2). Brass of the time was made by hammering and rolling into sheets and often had hard spots that could divert a scriber from its true course, so almost from the beginning, the divisions were made onto an arc of silver let into the limb. For a short period in the early 19th century, when platinum was cheaper than silver, platinum was used sometimes and, rarely, gold for the vernier. Ivory was used for cheaper instruments.

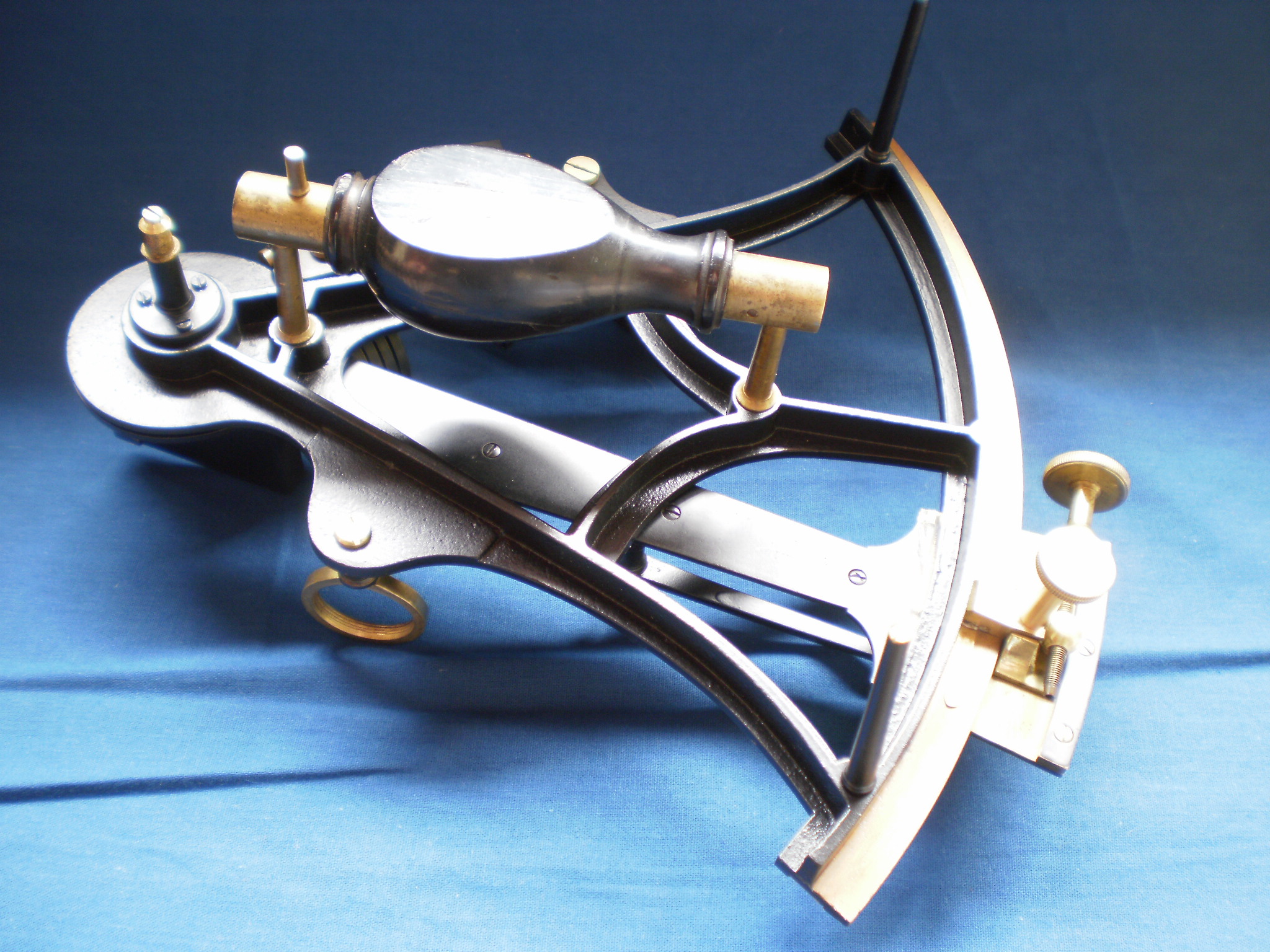

Figure 2: late 18th century bronze sextant frame

  Brass

An exception to the use of brass for frames was the pillar sextant, produced almost entirely by Jesse Ramsden and by the Troughton brothers. Copying the techniques used for clock plates, two thin brass plates were held apart by numerous pillars of brass to give a relatively light and stiff frame.

Aluminium alloy

An electrolytic process for the smelting of aluminium was devised in 1866, converting the metal from one of great rarity and expense to something much cheaper, but the pure metal is soft and not suitable as a structural material. Nevertheless, sextants were occasionally made with aluminium frames in the late 19th century, usually as an experiment or for a special purposes.

Early in the 20th century, hard and strong alloys of aluminium were developed. This, combined with the pressure die casting process, allowed manufacturers to mass produce aluminium alloy frames of about a third of the weight of those of bronze, with a strength and stiffness approaching or exceeding that of mild steel. Despite the availability of aluminium frames from the mid 1930s onwards, mariners on the whole continued to prefer bronze frames, regarding sextants with aluminium frames as cheap “knock offs”. The exigencies of the Second World War, however, required a much increased rate of production and, especially in Germany, non-ferrous metals were scarce. The US BuShips Mark II sextant in the USA and C Plath wartime sextant in Germany were produced in very large numbers and Tamaya in Japan also used aluminium in the later stages of the war. In the US and Japan, its seems that makers could not bring themselves to abandon bronze entirely for the rack, either attaching it with screws to the machined frame or casting it in place (Figure 3). C Plath, however, machined the rack directly into the aluminium frame, as did all post-WW II Russian instruments (Figure 4), with no consequences for accuracy and durability.

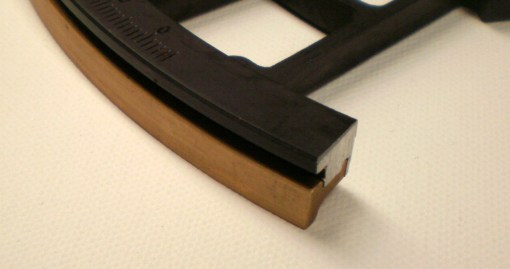

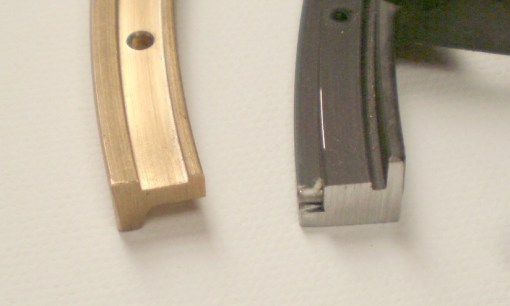

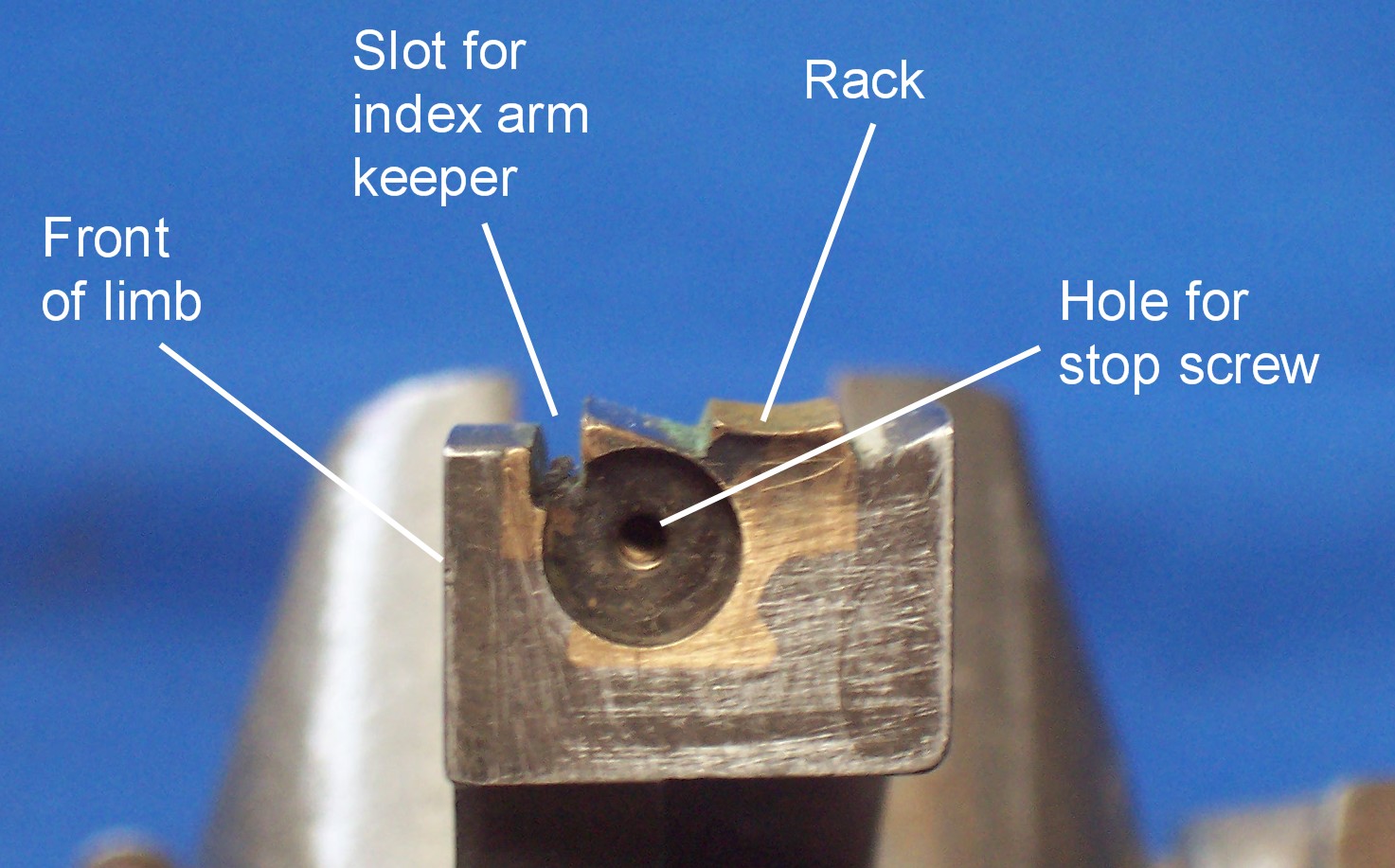

Figure 3: Cast-in rack, BuShips Mk II by Atlas Engineering
Figure 4: Rack and limb of Soviet SNO-T sextant

After the end of  WWII, most makers reverted to making the frames either entirely of bronze (despite its inferior stiffness)  or of aluminium alloy with a bronze rack. The USSR, however, made the frames for their SNO-M and their later SNO-T sextants entirely from aluminium alloy, with a bronze micrometer screw running in a rack cut directly into the frame (Figure 4, above). Both sextants performed well and the SNO-T was possibly the best sextant ever made.

Plastic
During the Second World War, very many ships were sunk by submarine and surface raiders. The US Maritime Commision equipped lifeboats with a basic navigating kit that included a plastic vernier sextant. For a sailing lifeboat, unable to sail upwind, this was no doubt adequate to make a landfall. With the increased popularity of recreational sailing in the sixties and  seventies, the East Berks Boat Company in the UK and the Davis Instrument Corporation in the US each produced  basic vernier sextants made entirely of plastic which were very useful for taking horizontal angles and for establishing an approximate position. Davis later increased the complexity and produced instruments, again entirely of plastic, that had the form of traditional sextants (Figure 5). Its performance, however, was very far from traditional. Its frame lacked rigidity and index error could scarcely be relied upon to stay the same from one observation to the next; and the index arm bearing of all makes suffered very badly from stick-slip, a problem that had been previously eliminated in the eighteenth century by Ramsden’s application of a tapered bronze shaft running in a brass bush .

Figure 5 : Davis Mk 15 plastic sextant

FORM AND CONSTRUCTION

The requirements of the frame are to unite the centre bearing with the arc or rack in a fixed relationship, to make provision for the attachment of shades, mirrors, handle and telescope and to do so without flexing or twisting. The axis of the index arm bearing must be square to the plane of the arc or rack and stay that way in use. The horizon mirror must also stay perpendicular. Nearly every sextant joined the bearing to the curved limb with two radii about 60 degrees apart and had one or more transverse bars that joined the two radii. At first there was no handle by which to hold the large frame, but as frames became smaller, the transverse bar was used as one of the points of attachment for the handle. The way the various subsidiary parts were attached to the frame varied greatly from maker to maker and they usually filled in the space between the radii and limb with sometimes fanciful frame work. There was probably little thought or experiment to determine whether one form of frame work was more rigid than another, though as knowledge of engineering structures improved it was probably appreciated that depth of the framework was an important contributor to stiffness.

Wooden frames

Figure 6 shows the rear of a typical wooden-framed octant of about 380 mm (15 inches) radius. It has the basic form described above and the position of the joints are shown by white lines.

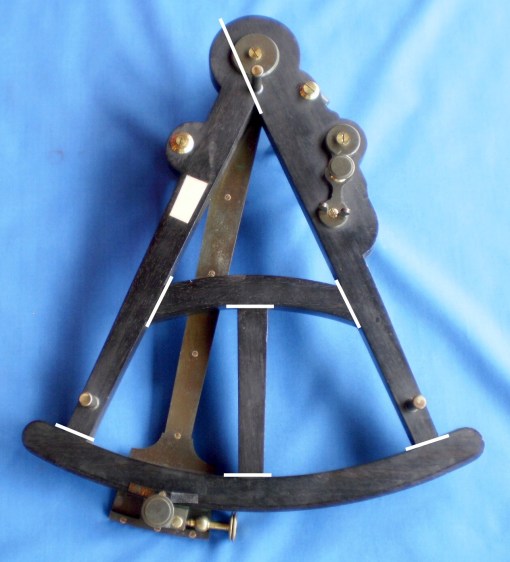

Figure 6: Ebony and brass octant, ca. 1850, Norie and Wilson.

The wood is heartwood ebony, a hard, dense, black and very strong African wood, resistant to rot. The index arm is of brass and the arc and vernier of ivory. Through tenon joints unite the radii to the limb and “blind” tenon joints are used elsewhere.

Figure 7: “Blind” mortice and tenon joint

Figure 8: Through-mortice

The joints of the curved transversal that unites the two radii are also blind. The part-radius between the transversal  and the limb probably adds little to its rigidity and served as a handhold. It may come as a surprise to some readers that this instrument by Norie and Wilson dates from after 1843, the year of Norie’s death. It has shown essentially no advance, even in detail, from instruments dated a hundred years earlier. We may note in passing the unsatisfactory index arm bearing, which was very prone to stick-slip.

Brass frames

As noted above, brass as a framing material was used only in pillar sextants. In the mid-19th century pillar sextant shown in Figure 9, the plates are only 1 mm thick, the pillars are 5 mm thick and they are united for the most part by screws with 10 mm diameter heads. A special screw driver was required for these screws, presumably to discourage “over-handy gentlemen” from dismantling the frame. The limb was about 3 mm thick and to unite it with the pillars that attach it to the rear frame, cheese head screws are passed through flanges on the pillars into the back of the limb, as screw heads on the front would interfere with the movement of the index arm.

Figure 9 : C19 Pillar frame sextant by Troughton and Simms

  Bronze frames

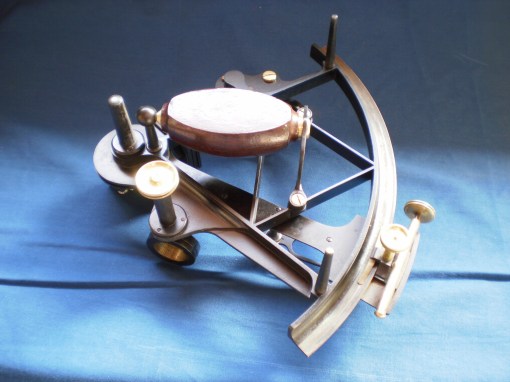

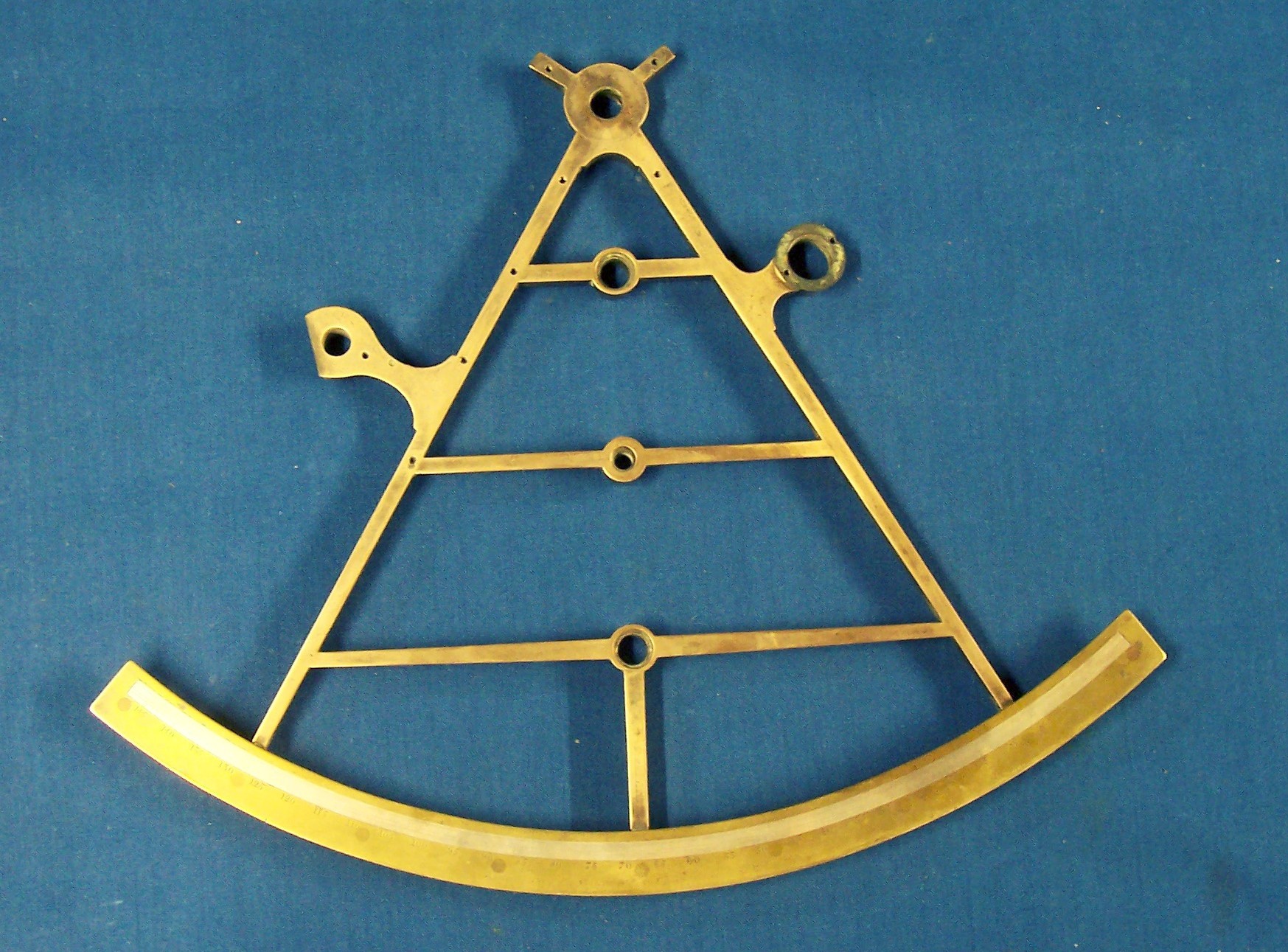

While maintaining the basic form with two radii uniting the centre to the limb, there was a great variety of ways that the space in between was filled in. A sextant is generally used with the frame in a vertical position and has to resist distortion mainly due to its own weight. However, resistance to bending in the plane of the frame is relatively easy to measure, so that I have used that as a surrogate for general resistance to distortion. I illustrate the set up for comparing resistance to flexion  in Figure 10. A 1 kg force is applied to the end of the index arm and the deflection measured by means of a dial indicator that reads to 0.01 mm.

Figure 10: Jig measuring flexion of Heath Curve Bar sextant frame

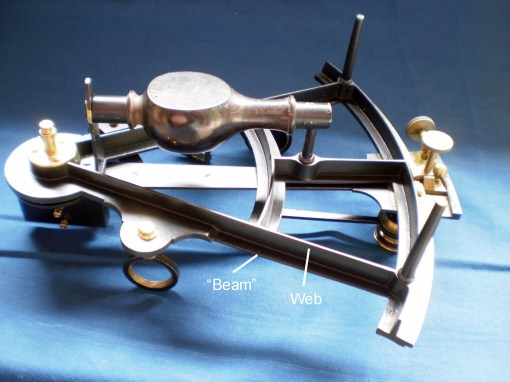

 A beam gets more resistant to bending as its depth increases and a substantial increase in bending resistance can be achieved with a relatively narrow vertical web. The frame of a mid- 19th century octant of about 200 mm radius shown in Figure 11 follows the pattern of its wooden predecessor with the addition of 10 mm deep ribs to radii and transversal of a mere 1 mm thickness.

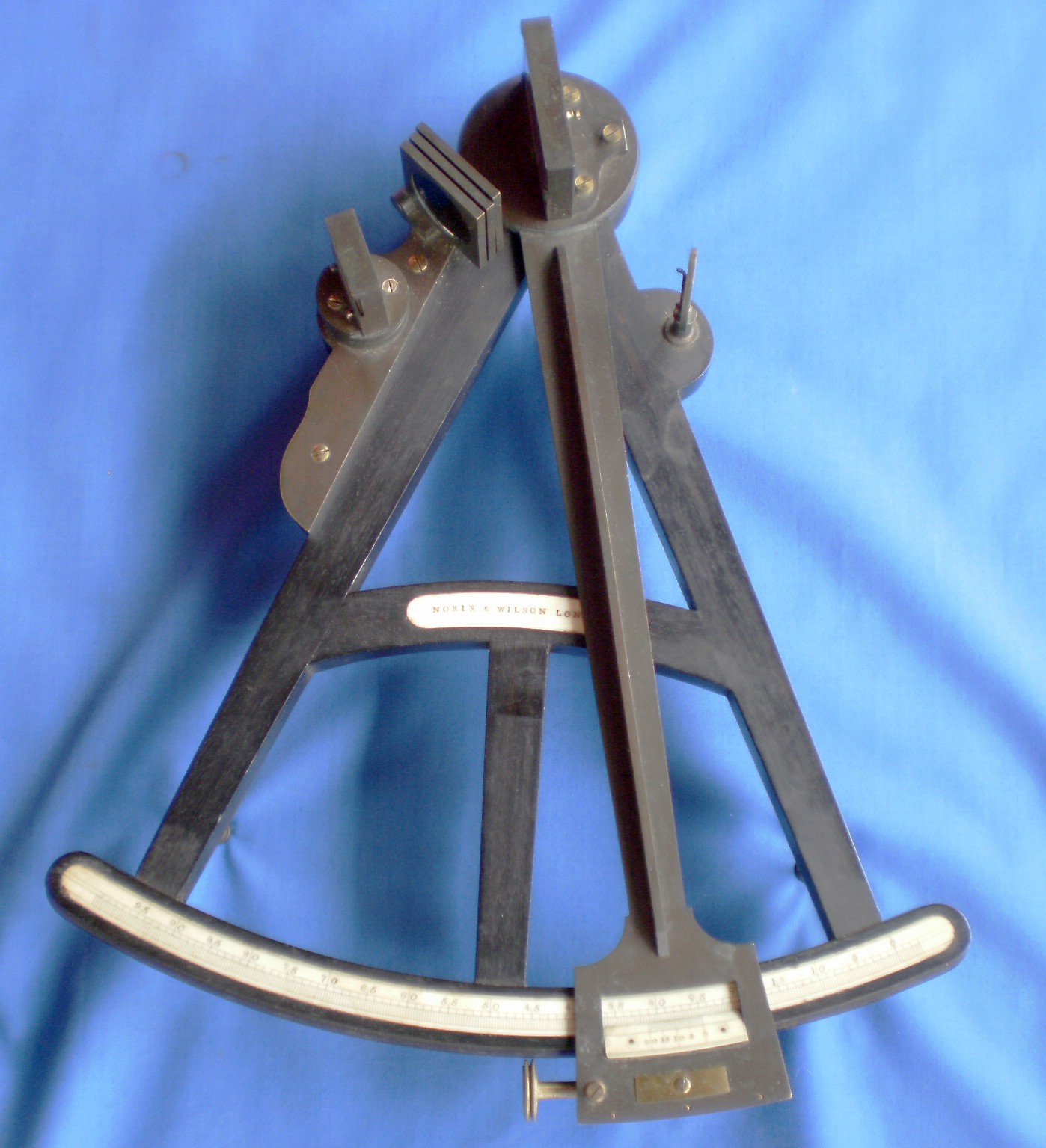

Figure 11 : Mid-19th century octant

  This was not very resistant to bending when compared to some later 20th century instruments. Changing the shape slightly, as in the tulip frame octant of the same period shown in Figure 12 may have increased sales, but it did not increase stiffness.

Figure 12: Mid 19th century “tulip” framed octant

  In spite of the fairly heavy webs, it was no more resistant to bending than the sextant shown in Figure 13, which was sixty or seventy years its senior. Apart from the composite limb of bronze and brass, this sextant of 210 mm radius is, as it were, all webs of substantial 10 x 2 mm section, with the addition of screwed-on triangular bracing (the bare frame is shown in Figure 2).

Figure 13: Late 18th century sextant by Gilbert and Co

 Troughton and Simms, a noted maker of surveying equipment, obviously appreciated the benefits of triangulation in making a structure stiff, and the sextant of 200 mm radius shown in Figure 14 flexed about 40 percent less than the ladder framed sextant by Hughes and Son from the same period, shown in Figure 15. In both instruments, the webs are about 10 x 2 mm in section, but in the Troughton and Simms sextant, the “beams” are also 2 mm thick and average about 15 mm wide, so the contribution to resistance to flexing may not come simply from the pattern of the webs.

Figure 14: Early 20th century sextant by Troughton and Simms

 By the end of the nineteenth century, the method of lunar distances had well and truly fallen into disuse and by 1910, lunar distances were no longer included in the Nautical Almanac. The drive towards high accuracy was no longer necessary and the stage was set for the introduction of the micrometer sextant by C Plath in about 1907.  By the mid 1930’s, all major manufacturers  were making micrometer instruments, which were not necessarily as accurate as their vernier predecessors but which were much easier and quicker to read. A further consequence of the introduction of the micrometer was that the radius had to fit the pitch of the micrometer worm. English manufacturers settled on a pitch of 18 threads per inch with a pitch circle radius for the rack of 6.366 inches (161.70 mm), while most other manufacturers had a pitch of 1.4 mm and a pitch circle radius of 160.43 mm (6.316 inches). This reduction of radius from about 180 to 160 mm had a disproportionately beneficial effect on the frame stiffness. As flexion varies as the cube of the length of a beam, flexion reduced in a ratio of about 5.8 : 4.1.

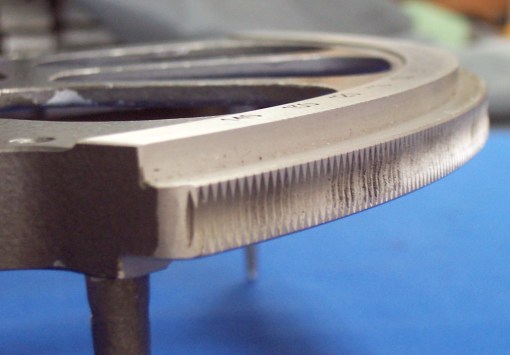

The design of the frame had to be altered so that there was enough “meat” in which to cut the rack, and most makers placed the rack on the edge of the limb, with a slot for the keepers that hold the index arm in contact with the limb(Figure 15). The exception was Heath and Co, who placed the rack on the back of the limb (Figure 16), arguing somewhat spuriously that wear on the index arm bearing would thereby be reduced.

Figure 15 : Typical rack layout (Plath, Tamaya, Hughes etc)

Figure 16 : Heath and Co rack layout.

 A popular pattern for the frame, which seems to have given great rigidity, was the three circle, used briefly by C Plath on their Drekreis vernier sextant, by the two major English makers, Hughes and Son and Heath and Co, and by La Filotecnica, an Italian company, little known for making sextants (Figure 17). Plath, Tamaya and the major US maker of sextants prior to WW II, Brandis and Sons, settled on various patterns of ladder-like lattices for their bronze-framed instruments (Figure 18).

Fig 17 : Rear of three ring sextant by La Filotecnica of Milan

Fig 18 : Ladder frame clone of C Plath sextant by Tamaya

 Aluminium alloy frames

As noted above, by the mid 1930’s all the major makers had introduced aluminium alloy frame, made by the pressure die-casting method. In this process, molten metal is injected under high pressure at several points into a closed die or mould and the pressure maintained until the metal freezes. This produces dense, uniform, castings, free of hard spots or bubbles and having a surface finish as good as that of the interior of the die, but as importantly, the material used is about  twice as resistant to bending as bronze and about its equal in resisting corrosion.

Thanks to the generosity of Ken Gebhart, I am able to illustrate the manufacturing steps in the production of an alloy frame with bronze rack, for the fabulously costly US Navy Mark III sextant, made in Milwaukee under licence from C Plath.  Figure 19 shows the frame fresh from the die except that the risers for the escape of air and gases and the injection points have been “fettled” off. Also shown is the part-machined bronze rack. Flash, the thin slivers of metal where it has seeped between the two halves of the die is then cleaned off and both faces of the casting machined flat. The hole for the index arm bearing is then reamed out to finished size and this hole is used to locate the frame for further machining operations. For example, to turn the seat for the rack (Figure 20) the hole is located on a well-centred and close-fitting spigot on the turning machine.

Figure 19 : Rear of alloy frame casting and bronze arc

Figure 20 : Seat for rack

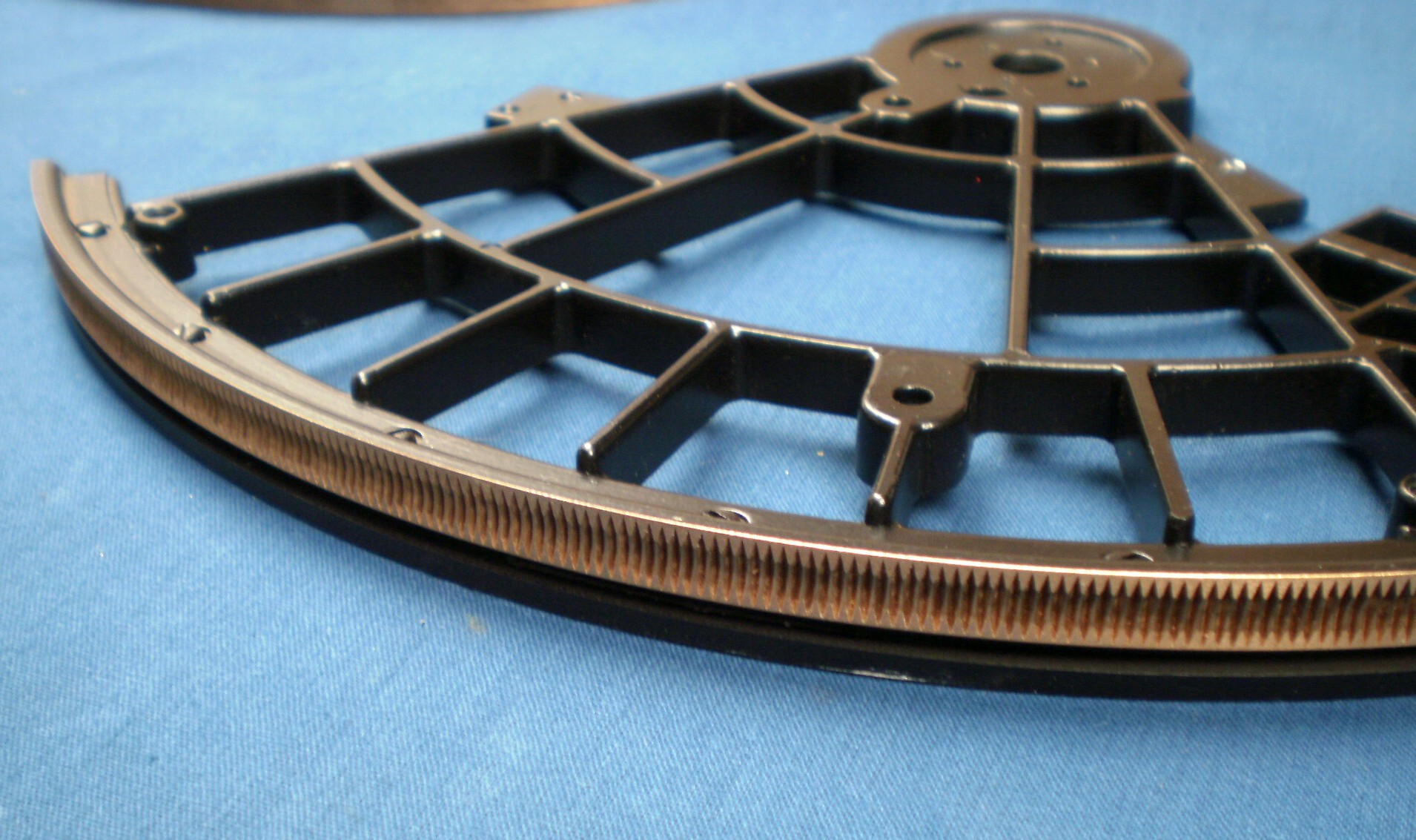

 The rack casting is then attached to the alloy frame with screws (Figure 21) and finish-turned to size before being transferred to a hobbing machine to have the teeth of the rack generated. Again, the central hole is used to locate the composite  frame on the machine to ensure that the teeth of the rack will be truly centred. Figure 22 shows the finished frame, ready to have the index arm bearing and other parts fitted.

Figure 21 : Frame and rack casting united

Figure 22 : Rear of finished MK III frame

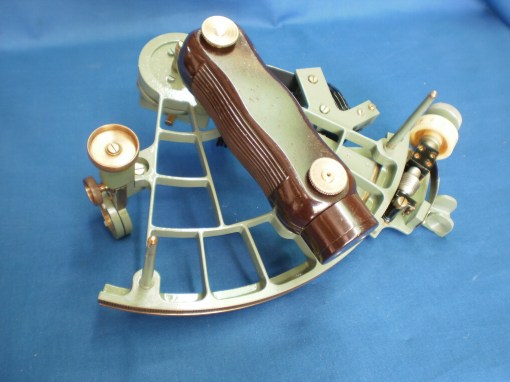

Most makers of alloy framed instruments  copied the forms  of bronze predecessors, mainly ladder patterns as in the Mark III above, though during the Second World War C Plath settled on a standard triangulated pattern (Figure 23). This was copied in the Soviet SNO-M sextant and the Chinese  GLH 130-40  sextant, while Plath reverted to the ladder pattern when sextant production resumed in about 1950.

Figure 23 : Wartime C Plath sextant, triangulated frame

Freiberger Prazisionsmechanik, who as far as I know had never made sextants prior to WW II, applied their expertise in surveying instruments to produce  their Trommelsextant (Figure 24) and the radically different Skalen sextant (Figure 25). The Freiberger sextants , together with the  Soviet SNO-T, closely similar to the Trommelsextant, had exceptionally rigid frames, with material concentrated around the edges, a stiffening central web and the handle attached directly to the edges of the frame via a sub-frame.

Figure 24 : Freiberger Trommelsextant

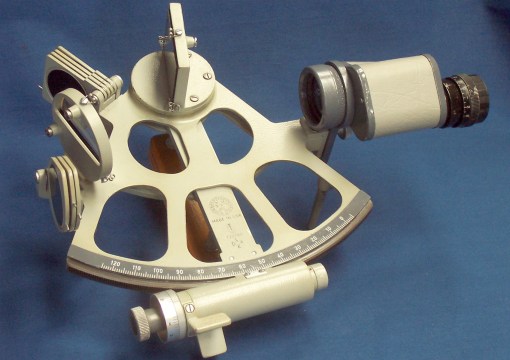

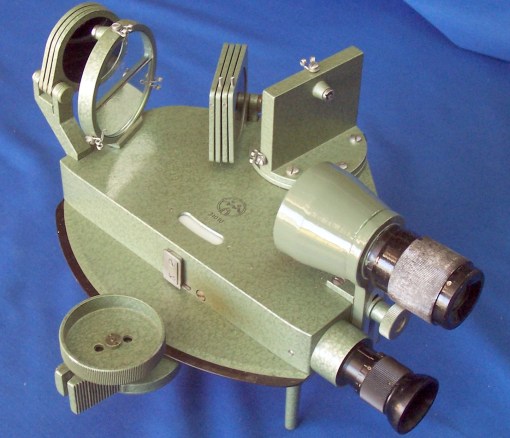

Figure 25 : Freiberger Skalensextant

The WW II Plath instruments and the post-war SNO-M, SNO-T and Freiberger instruments all had the rack cut directly into the frame with a bronze worm. This combination seems to have stood the test of time, as a well-used 1982 SNO-T sextant I once calibrated had no non-adjustable error of greater than 11 seconds. Nevertheless, many makers, including Plath and Tamaya, continued to fit their sextants with bronze racks, presumably because their customers preferred them that way, despite the extra expense involved in making them. A demand continued for wholly bronze frames. Despite their theoretically inferior properties, they perform just as well.

One professional mariner of my acquaintance, a retired deep-sea trawler captain, says that he preferred a bronze framed instrument because of its greater weight, which he felt gave it extra stability when taking sights in rough weather. A bronze rack adds about 150 G to the weight of the frame, while a typical bronze frame, at 600 G is about 250 G (abut half a pound) heavier than a typical alloy frame.





Evolution of the Sextant Micrometer

3 01 2009

See also the post for 4 November, 2012, “Fleuriais’ Marine Distance Meter”.

Some time in the first ten years of the twentieth century, possibly in 1907, Carl Plath introduced the micrometer sextant to navigators. It was not claimed that the micrometer sextant was more accurate than the vernier type, rather that it was easier and quicker to read. The National Maritime Museum at Greenwich has an example dating to about  1917:        http://www.nmm.ac.uk/collections/explore/object.cfm?ID=NAV1130&picture=1#content.  The instrument shown is missing the fixed part of the release catch, not the first I have seen in this condition.

The micrometer reads to one  minute and the mechanism of the Plath release catch appears to have remained the same right through to the Second World War and beyond, when manufacture was continued as the USSR Navy SNO-M sextant. From about 1940, Tamaya also began to produce a sextant that was in every respect identical to Plath’s design. The following photo is of an early Tamaya, serial number 606 (Figure 1).

100_10562

Figure 1 : Early Tamaya micrometer sextant

Figure 2 shows a detailed view of the micrometer mechanism. If you look at the preview of The Nautical Sextant, you will see its close similarity to the USSR SNO-M, which in turn is identical in practically all respects to the wartime C Plath.

micrometer-detail

Figure 2 : Details of Plath-type micrometer mechanism.

Apart from the scale illumination system, the sextant could be a C Plath of the same period. Perhaps it was. In the nineteenth century, it was common for sellers to put their own name on a sextant made by someone else and Tamaya may have continued the practice into the twentieth.

In about 1909 Heath and Co. introduced their “Hezzanith endless tangent screw automatic clamp” which incorporated all the elements of a micrometer sextant but without a micrometer drum. It allowed rapid positioning of the index arm followed by fine adjustment, but the readout was still from a vernier main scale. The patent document concluded:

100_1704

Figure 3: Heath’s Patent rapid release clamp

However, C Plath may well have preceded Heath and Co, for Brent Evers recently sent me some photogaphs of an instrument in his possession that differs in no essential respect from Heath’s  rapid release mechanism . The instrument frame is the Dreikreis (three circle) pattern (Figure 4) .

Figure 4 : C Plath Dreikreis sextant with rapid release clamp. Copyright Brent Evers, with permission.

There is a finely skew-cut rack on the back of the limb, with which a worm engages. The worm runs in bearings on a swinging plate between two centres, so that it can be swung out of engagement with the rack against  pressure, by squeezing two knobs between finger and thumb. A helical spring between the knobs keeps the worm in engagement.  A leaf spring provides axial preload to eliminate end-float of the worm spindle (Figure 5)

Figure 5 : Detail of Plath rapid release mechanism. Copyright Brent Evers, with permission

The near-identity of the two mechanisms is very evident from even a cursory inspection of Figure 6, which details Heath and Co’s patent rapid release clamp. The only point of difference is that Heath used a folded leaf spring between the two release clamp knobs to keep the worm in engagement.

Figure 6 : Heath and Co’s rapid release clamp mechanism

I am inclined to believe that Heath copied from Plath rather than the other way around, as the Plath instrument has a serial number in the low one hundreds, which would place it firmly in the nineteenth century, and the parts of the swinging plate have been fabricated, rather than employing a casting as Heath did. The Plath instrument may even have been a prototype. However, the serial number, placed at the left end of the limb, may have been from a separate series, as the sextant also has the  stickman “Sunseeker” logo (registered in 1905) and is named “C PLATH HAMBURG” in the centre of the limb,  in their very characteristic font. But we know that Plath had introduced a far superior design of micrometer mechanism by 1908, so it is most likely that Heath copied a mechanism that Plath had abandoned.

Note: (added 21 July 2011) I have since come across a Plath instrument with a serial number that places it in the late 1920s, though it has an archaic Plath frame. It has the same fine adjustment mechanism as the apparently earlier instrument.

In the early thirties, Heath and Co, by now merged with W F Stanley and Co., made the logical step of increasing the pitch of the rack and adding a micrometer drum:

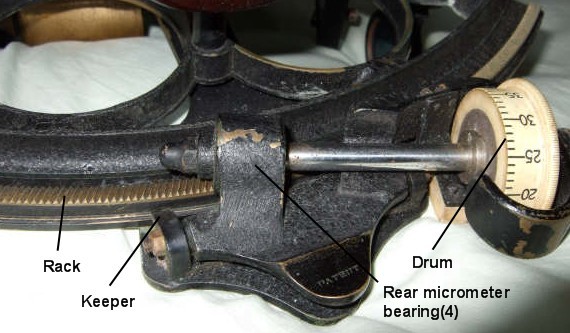

copy-of-heath-micro3

Heath and Co was unusual in placing the rack on the back of the limb, whereas all other makers placed it on the edge, including Brandis, who by 1931 had produced a micrometer sexant of conventional design.

By the mid 1930’s,  the other main sextant maker not mentioned so far, Hughes and Son, had begun to produce a micrometer sextant. Until recently, I had thought that this had arrived without an intermediate step between the vernier and micrometer, but a few days ago a “missing link” came into my hands. It seems at first sight to be  a typical Hughes three ring vernier sextant, but the rear edge of the limb is provided with a rack and there is a micrometer worm with release catch, but no micrometer drum. Unlike nearly all other micrometer sextants except the USSR Navy SNO-T and the Italian Filotecnica Salmoiraghi, the micrometer worm is cylindrical rather than conical, in this case because there was no need to angle the shaft to accommodate a micrometer drum.  The pitch of the worm is 18 turns per inch, so a micrometer drum divided into 60 arc minutes could easily have been added, except that the radius of the rack was rather too large, at about 6.7 inches (170 mm). The following three photographs give details of the mechanism of this rare sextant, whose serial number places it in 1931*:

Micrometer, front view

Micrometer, front view

Micrometer, rear view

Micrometer, rear view

Micrometer, exploded view

Micrometer, exploded view

The final version of the Hughes micrometer, continued right until the end of manufacture in the late 1960’s, is shown below. The conical worm is still of 18 t p i (M 1.41), but the pitchcircle radius of the rack has been reduced to 6.366 inches (161.70 mm).

Hughes micrometer, final version

Hughes micrometer, final version

Quite why makers other than C Plath were slow to introduce the micrometer is not clear. It was described by Hero of Alexandria, so was not patentable. Perhaps navigators of the time were conservative.

Lovers of detail will find much more about the detailed structure of the nautical sextant in my book, The Nautical Sextant .

* I have since come across the same model with a 1925 serial number.
